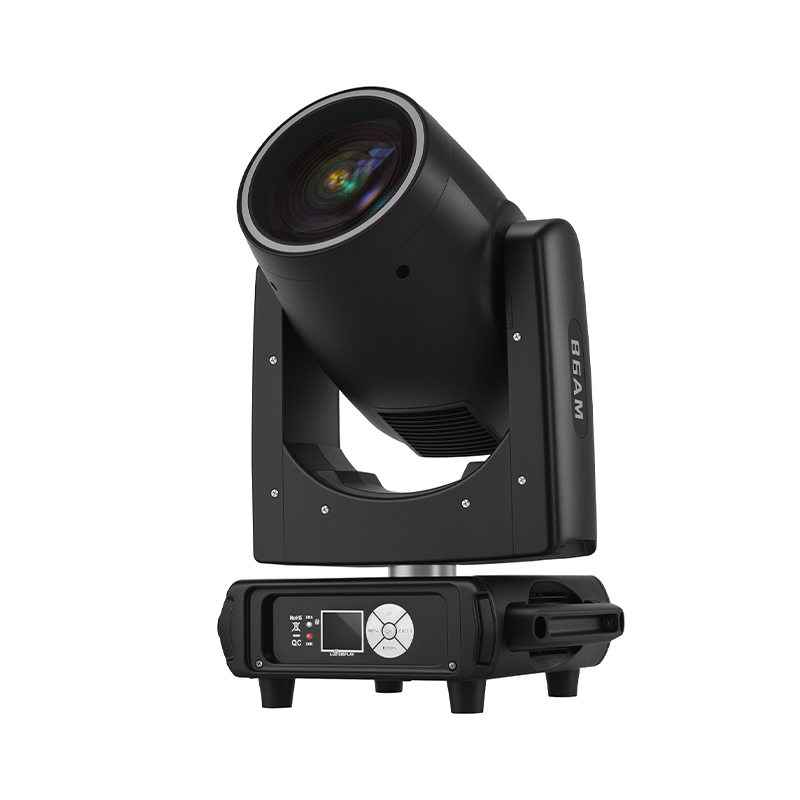

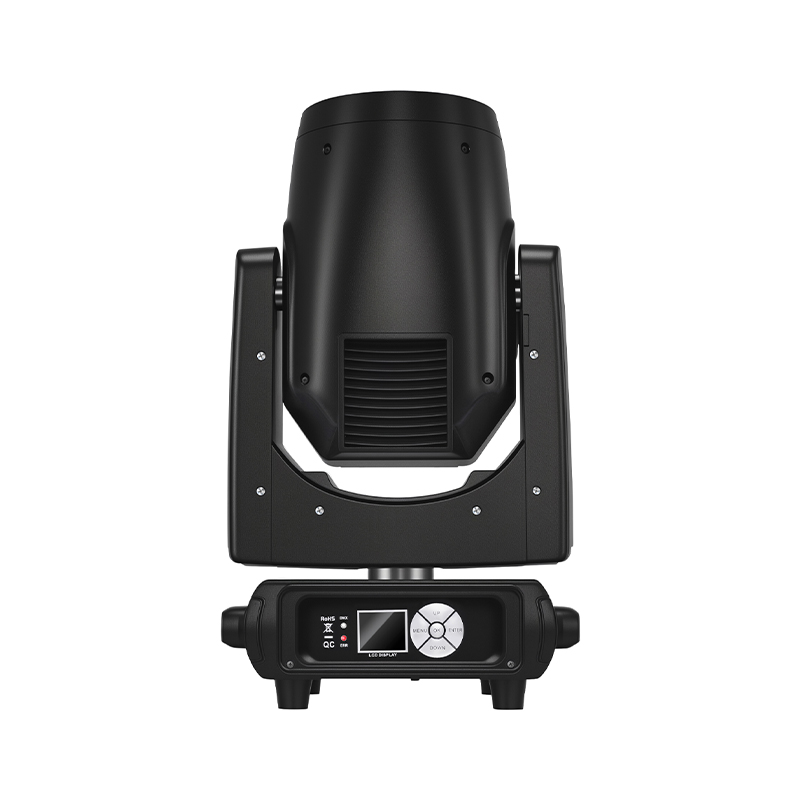

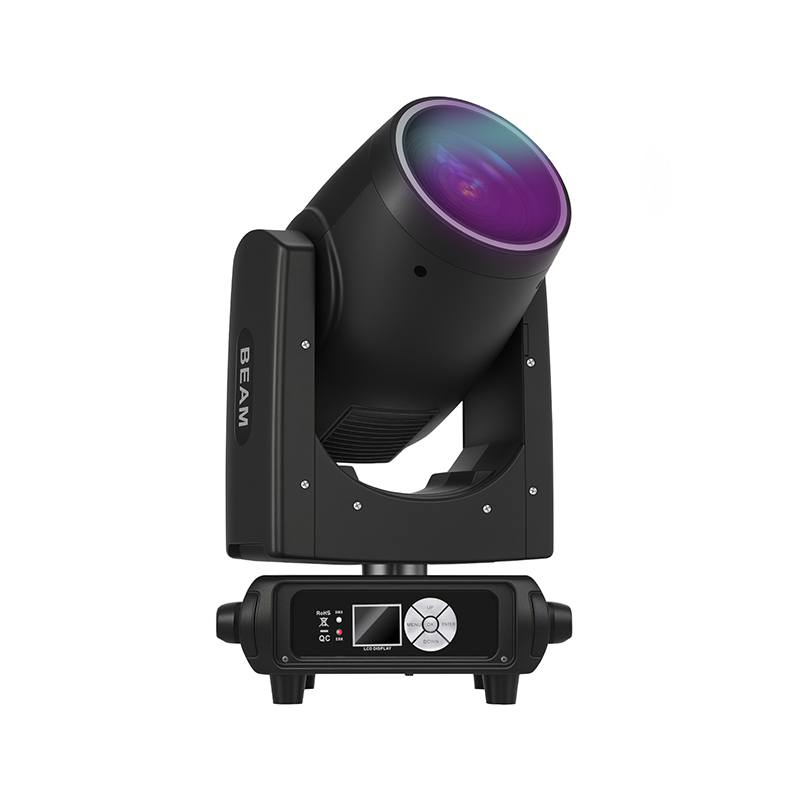

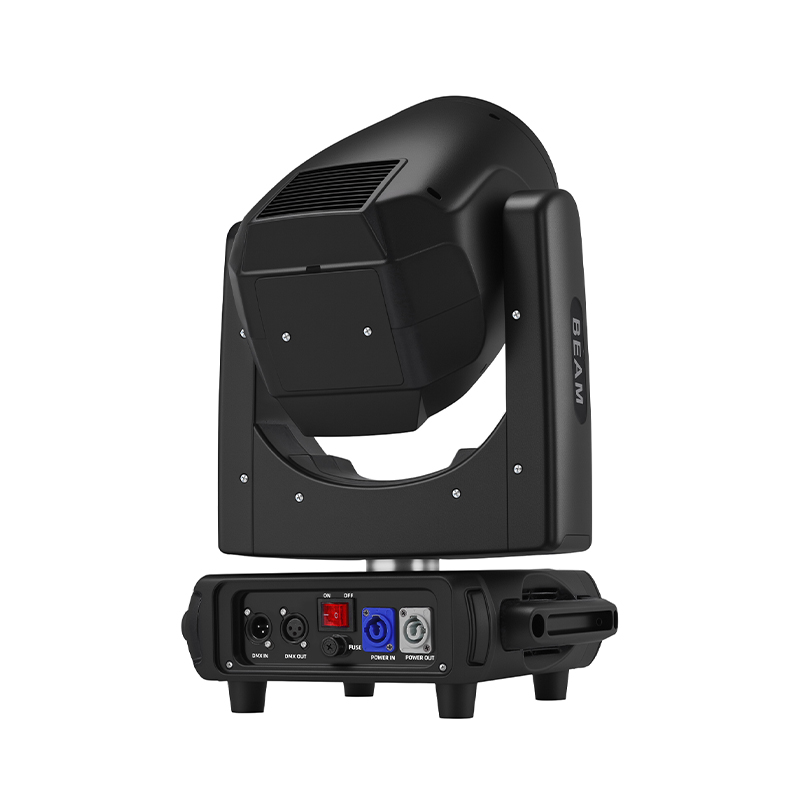

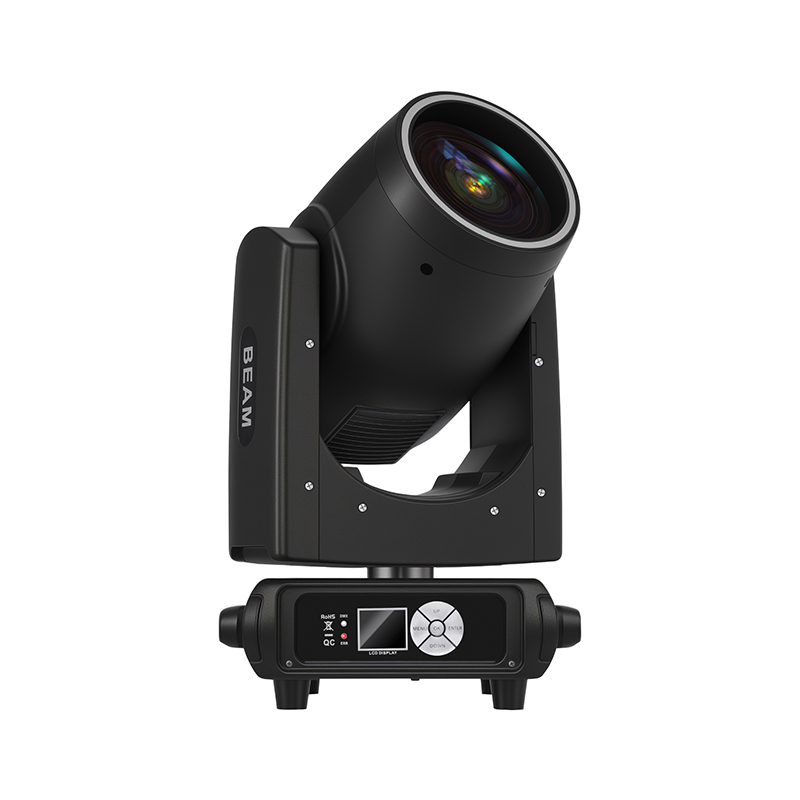

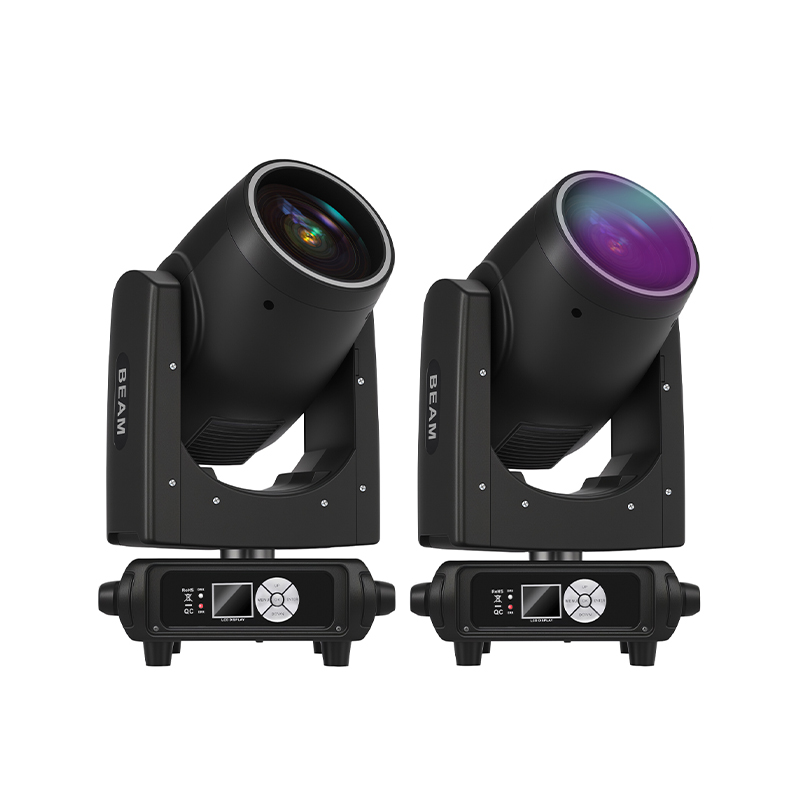

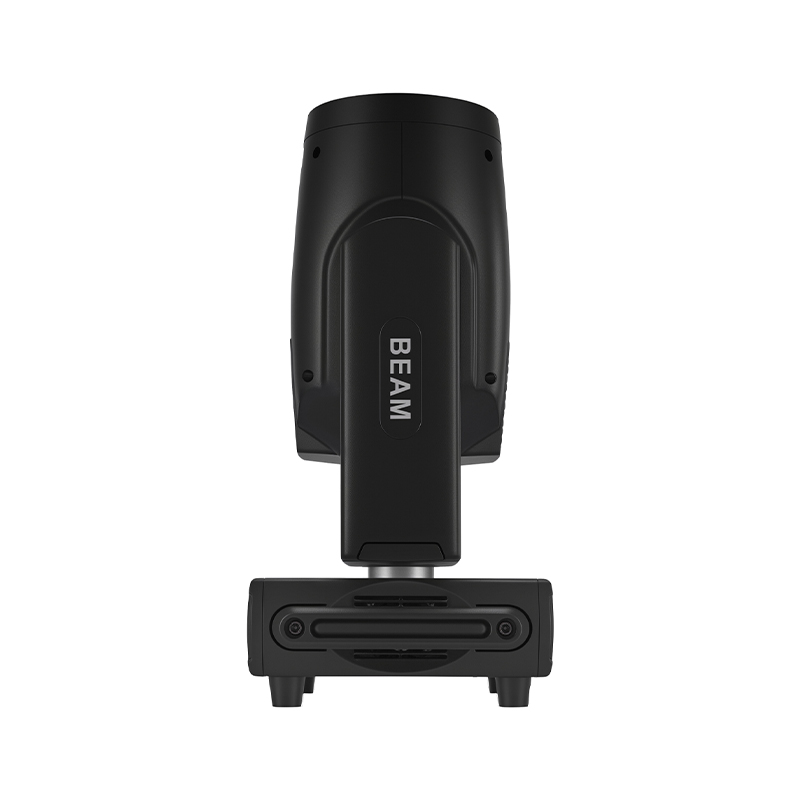

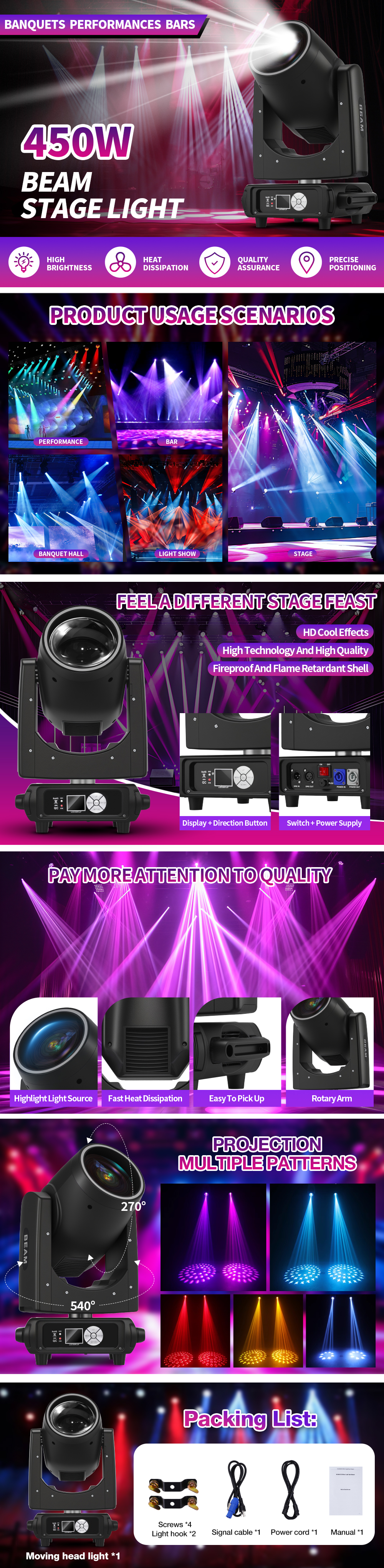

1.Main Functions
Input Voltage: AC 100V-240V/47-63HZ
Power Consumption 450W
Lamp Type：OSRAM 380W
Control Modes: DMX512 Control / Built-in Auto-run / Sound-activated Auto-run / Master-Slave
Channel Modes: 16 Channels

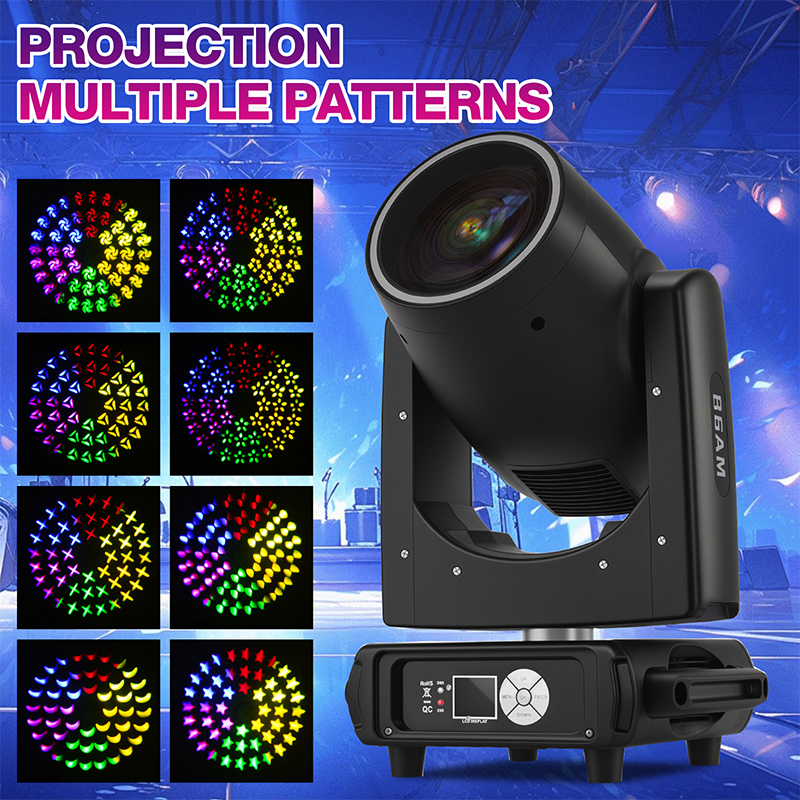

One color wheel with 14 colors plus white light, and one gobo wheel with 13 gobos plus white light. The color wheel features flowing scroll and half-color effects. The gobo wheel offers flowing scroll and shaking effects.
Two prisms, each with arbitrary angle positioning and forward/reverse rotation effects.
Strobe with multiple strobing functions, smooth dimming without jitter when gradually turning on/off.
Protection Class: IP20
Dimensions: 530mm * 380mm * 410mm
Net Weight: 12.05 Kg
2.DMX Channel table
DMX Channel table
16 channel | |||
channel | function | value | description |
1 | Color wheel | 0 - 4 | White Lighting |
5 - 9 | White Lighting + Color 1 | ||
10 - 14 | Color 1 | ||
15 - 19 | Color 1 + Color 2 | ||
20 - 24 | Color 2 | ||
25 - 29 | Color 2 + Color 3 | ||
30 - 34 | Color 3 | ||
35 - 39 | Color 3 + Color 4 | ||
40 - 44 | Color 4 | ||
45 - 49 | Color 4 + Color 5 | ||
50 - 54 | Color 5 | ||
55 - 59 | Color 5 + Color 6 | ||
60 - 64 | Color 6 | ||
65 - 69 | Color 6 + Color 7 | ||
70 - 74 | Color 7 | ||
75 - 79 | Color 7 + Color 8 | ||
80 - 84 | Color 8 | ||
85 - 89 | Color 8 + Color 9 | ||
90 - 94 | Color 9 | ||
95 - 99 | Color 9 + Color 10 | ||
100 - 104 | Color 10 | ||
105 - 109 | Color 10 + Color 11 | ||
110 - 114 | Color 11 | ||
115 - 119 | Color 11 + Color 12 | ||
120 - 124 | Color 12 | ||
125 - 129 | Color 12 + Color 13 | ||
130 - 134 | Color 13 | ||
135 - 139 | Color 13 + Color 14 | ||
140 - 144 | Color 14 | ||
145 - 149 | Color 14 + White Lighting | ||
150 - 200 | Counterclockwise Rotation (Fast to Slow) | ||
201 - 255 | Clockwise Rotation (Slow to Fast) | ||
2 | Stobe | 0 - 3 | Dimming |
4 - 103 | Normal Strobe | ||
104 - 107 | Dimming | ||
108 - 207 | Pulsed Strobe | ||
208 - 212 | Dimming | ||
213 - 251 | Random Strobe | ||
252 - 255 | Dimming | ||
3 | Dimming | 0 - 255 | 0%-100% Linear Dimming |
4 | Gobo Disk | 0 - 4 | Round Hole |
5 - 9 | Pattern 1 | ||
10 - 14 | Pattern 2 | ||
15 - 19 | Pattern 3 | ||
20 - 24 | Pattern 4 | ||
25 - 29 | Pattern 5 | ||
30 - 34 | Pattern 6 | ||
35 - 39 | Pattern 7 | ||
40 - 44 | Pattern 8 | ||
45 - 49 | Pattern 9 | ||
50 - 54 | Pattern 10 | ||
55 - 59 | Pattern 11 | ||
60 - 64 | Pattern 12 | ||
65 - 69 | Pattern 13 | ||
70 - 125 | Counterclockwise Rotation (Fast to Slow) | ||
126 - 130 | Round Hole | ||
131 - 190 | Clockwise Rotation (Slow to Fast) | ||
191 - 195 | Pattern 1 Jitter | ||
196 - 200 | Pattern 2 Jitter | ||
201 - 205 | Pattern 3 Jitter | ||
206 - 210 | Pattern 4 Jitter | ||
211 - 215 | Pattern 5 Jitter | ||
216 - 220 | Pattern 6 Jitter | ||
221 - 225 | Pattern 7 Jitter | ||
226 - 230 | Pattern 8 Jitter | ||
231 - 235 | Pattern 9 Jitter | ||
236 - 240 | Pattern 10 Jitter | ||
241 - 245 | Pattern 11 Jitter | ||
246 - 250 | Pattern 12 Jitter | ||
251 - 255 | Pattern 13 Jitter | ||
5 | Prism 1 | 0 - 127 | No Function |
128 - 255 | Prism 1 Engage | ||
6 | Prism 2 | 0 - 127 | No Function |
128 - 255 | Prism 2 Engage | ||
7 | Prism Rotation | 0 - 127 | Linear Rotation |
128 - 188 | Clockwise Rotation (Fast to Slow) | ||
189 - 194 | Stop | ||
195 - 255 | Counterclockwise Rotation (Slow to Fast) | ||
8 | Atomization | 0 - 127 | No Function |
128 - 255 | Atomization Engage | ||
9 | Focus | 0 - 255 | 0%-100% Linear Focus |
10 | X-axis | 0 - 255 | 0-540 Degrees |
11 | X-axis Fine-tuning | 0 - 255 | X-axis 16-bit |
12 | Y-axis | 0 - 255 | 0-270 Degrees |
13 | Y-axis Fine-tuning | 0 - 255 | Y-axis 16-bit |
14 | XY Speed | 0 - 255 | Fast to Slow |
15 | Seven-color | 0 - 127 | No Function |
128 - 255 | Seven-color Engage | ||
16 | Reset | 0 - 99 | No Function |
100 - 105 | Lamp Extinguish | ||
106 - 199 | No Function | ||
200 - 205 | Lamp Ignite | ||
206 - 240 | No Function | ||
241 - 255 | Reset (Valid for 5 Seconds) | ||

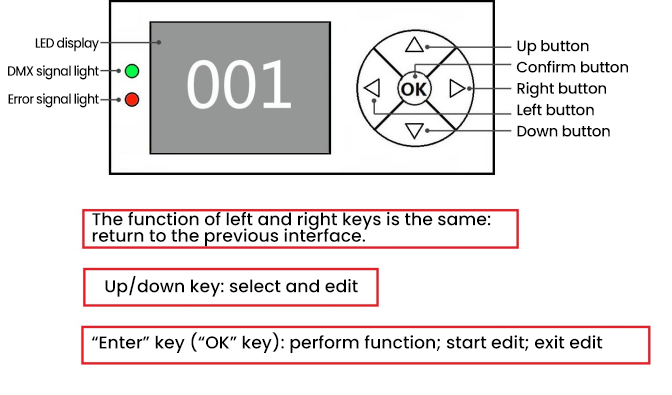

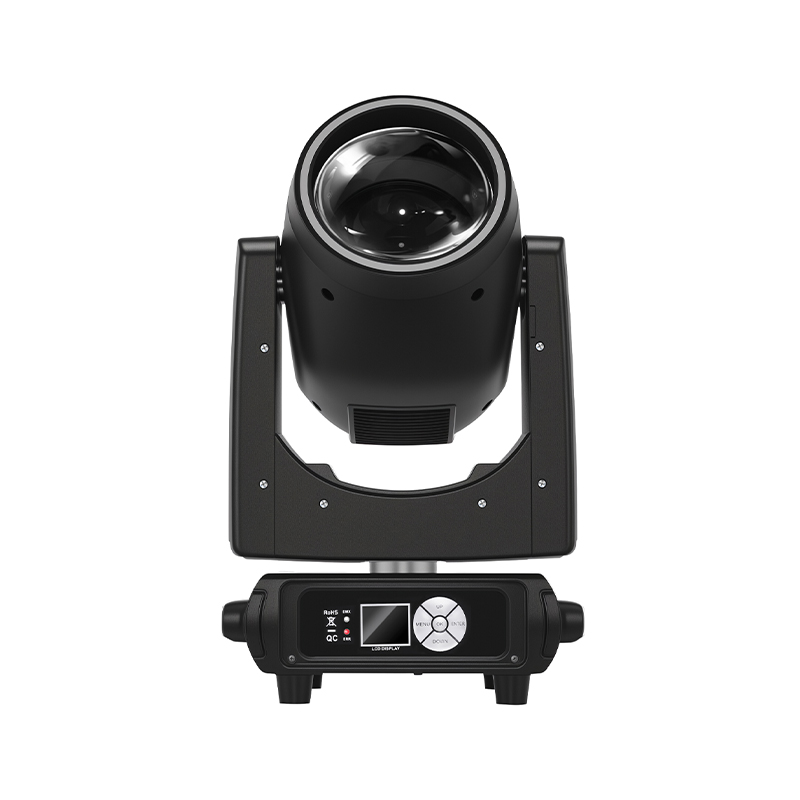

1.Display Panel Operation
MENU : Cycle through top-level menus or return to the previous menu level.
ENTER: Access the next menu level or confirm and save selected parameters.
UP: Navigate upward in the menu, switch selected parameters, or increase values.
DOWN: Navigate downward in the menu, switch selected parameters, or decrease values.
Menu Structure
Settings | Functions | |
Address Code | 1 - 512 | Set Address Code |
Channel | 16CH | Set Channel |
Operation Mode | DMX512/Auto-run/Sound Control/Manual | Set Operation Mode |
Address Code Auto | On/Off | Auto-calculate Address Code: For example, if the current address code is 1 and the channel mode is 16CH, after enabling Address Code Auto and pressing "Set Address Code", the code will automatically increase by 16 (i.e., the address code becomes 17). |
Signal Hold | On/Off | When enabled, the device will maintain previous actions in the absence of a signal. |
XY Swap | On/Off | XY Channel Swap |
X-axis Inversion | On/Off | X-axis Inversion |
Y-axis Inversion | On/Off | Y-axis Inversion |
Encoder Error Correction | On/Off | Encoder Error Correction |
Hall Effect Error Correction | On/Off | Hall Effect Error Correction |
Restore Settings | On/Off | Restore Factory Settings (Fine-tuning data will not be restored). |
Manual | Manual | Functions | |
01 | Color Wheel | 0-255 |
|
02 | Strobe | 0-255 |
|
03 | Dimming | 0-255 |
|
04 | Gobo Disk | 0-255 |
|
05 | Prism 1 | 0-255 |
|
06 | Prism 2 | 0-255 |
|
07 | Prism Rotation | 0-255 |
|
08 | Atomization | 0-255 |
|
09 | Focus | 0-255 |
|
10 | X-axis | 0-255 |
|
11 | X-axis Fine-tuning | 0-255 |
|
12 | Y-axis | 0-255 |
|
13 | Y-axis Fine-tuning | 0-255 |
|
14 | XY Speed | 0-255 |
|
15 | Seven-color | 0-255 |
|
16 | Reset | 0-255 |
|
Calibration | Function |
Please enter a 4-digit password before using this function. | |
Display | Function | |
Screen Saver Time | 15s/30s/60s/Off | Return to desktop when the time arrives. |
Backlight Time | 15s/30s/60s/Off | Screen turns off when the time arrives. |
Screen Inversion | On/Off | Screen normal/reverse rotation control. |
Language | Chinese/English | Select Chinese or English. |
Reset | Function | |
Full Reset | Yes/No | Full Motor Reset |
XY Reset | Yes/No | XY Motor Reset |
Head Reset | Yes/No | Head Small Motor Reset |
Lamp Settings | Function | |
Power-on Lamp On | Yes/No | Automatically turn on the lamp after power-on reset is completed. |
Manual Lamp On | Yes/No | Manual lamp ignition |
Half Power | Yes/No | Whether to enable half-power mode |
DMX Data Monitoring | Function |
Monitor DMX512 data values of each channel. | |
Reset Information | Function |
If the system reset is normal, it will display "System Normal". If there is a reset error, it will prompt the corresponding reset error information. | |
Sensor Information | Function | |
X Encoder | ***** | Current encoder count value |
Y Encoder | ***** | Current encoder count value |
X Encoder Status | 00/11 | Signal line status of encoder A and B |
Y Encoder Status | 00/11 | Signal line status of encoder A and B |
X Hall Effect | 0/1 | Hall effect status: 1 when the hall is at the magnet position, 0 otherwise |
Y Hall Effect | 0/1 | Hall effect status: 1 when the hall is at the magnet position, 0 otherwise |
Color Wheel Hall Effect | 0/1 | Hall effect status: 1 when the hall is at the magnet position, 0 otherwise |
Gobo Disk Hall Effect | 0/1 | Hall effect status: 1 when the hall is at the magnet position, 0 otherwise |
Focus Hall Effect | 0/1 | Hall effect status: 1 when the hall is at the magnet position, 0 otherwise |
Usage Record | Function |
Usage times, usage duration, lamp-on time, etc. | |
System Version | Function |
System hardware version and software version number | |
Instructions：
1. When restoring factory settings, only parameters with underscores in the menu will be restored. Other parameters will not be automatically restored or cleared.
2. The [Send Local Parameters] menu allows you to send the parameter settings of underlined items from this device to another or multiple lighting fixtures via DMX data cable, avoiding repetitive setup work. When the receiving fixture receives the correct parameters, it will perform a reset.
2.Troubleshooting
Fault | Solution |
Fixture does not power on and shows no response | Check if the fuse is damaged. Verify that the AC voltage is normal. The switching power supply inside the fixture may be damaged. The internal control board of the fixture may be damaged.
|
Fixture is not controlled | Check if the DMX signal is normal. When normal, the DMX signal indicator on the display panel will flash. Verify that the address code is set correctly. Check if the channel mode is set correctly. Check if the DMX data cable is too long or if the number of daisy-chained fixtures is excessive. |
XY-axis positioning is abnormal | The optocoupler sensor may be damaged or improperly installed, causing it to correct even when in the correct position. Set [XY Error Correction Enable] to [No] in the menu. Alternatively, adjust the optocoupler sensor circuit board to the appropriate position, or replace the circuit board. |
