9 channels
Passage | Function | Description |
1 | Horizontal operation | 0-255 |
2 | Vertical operation | 0-255 |
3 | Colors |
|
0-139 | Color selection | |
140-255 | Automatic color change. Slow to fast | |
4 | Patterns |
|
0-63 | Fixed pattern | |
64-127 | Pattern jitter | |
128-255 | Automatic pattern change from slow to fast | |
5 | Strobe | 0-255 |
6 | Dimming | 0-255 |
7 | Horizontal and vertical operation | 0-255 |
8 | Automatic mode | 0-255 Adjust upward for forward rotation, downward for reverse rotation |
9 | Reset | 250-255 (5 seconds) |

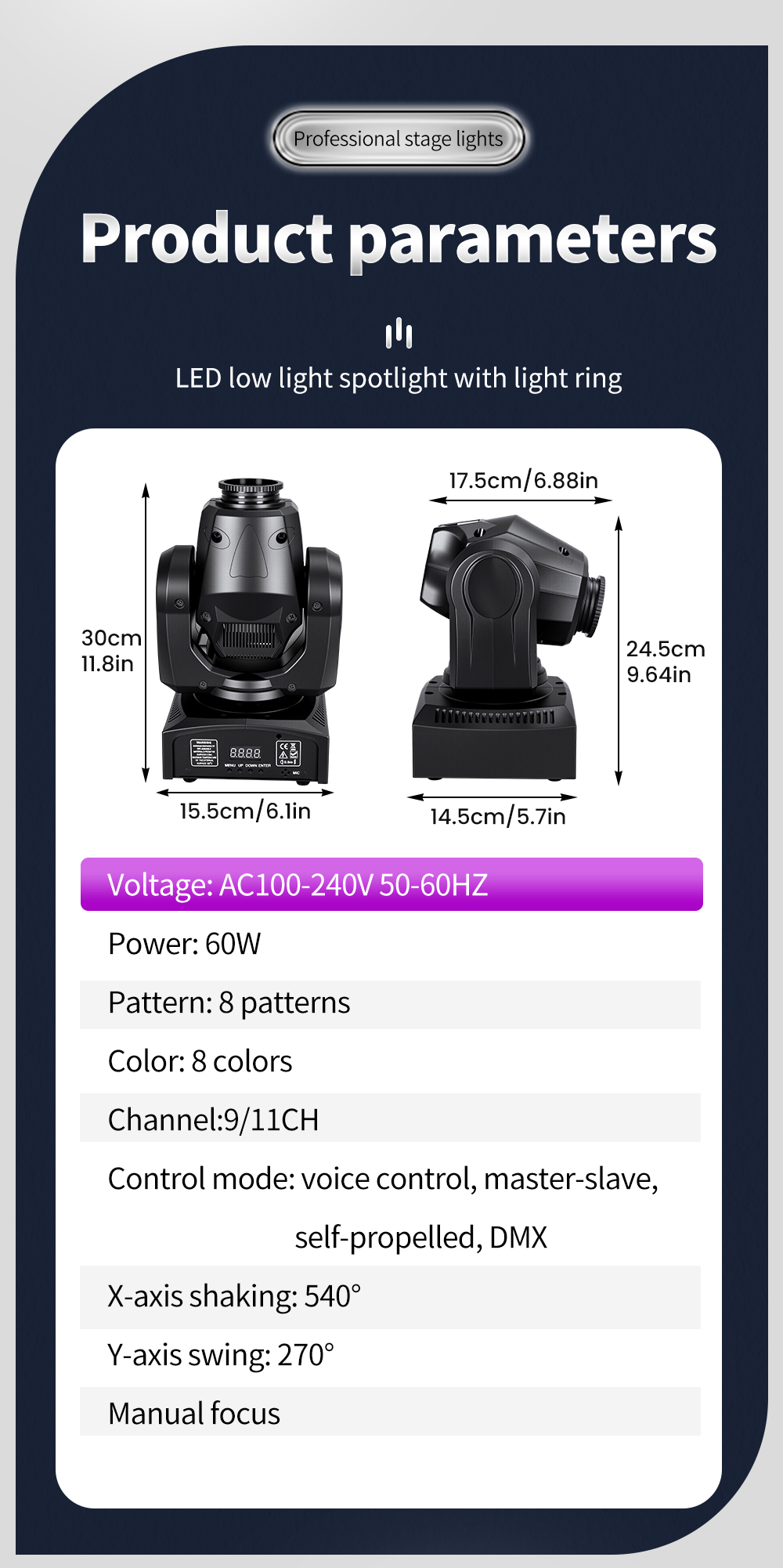

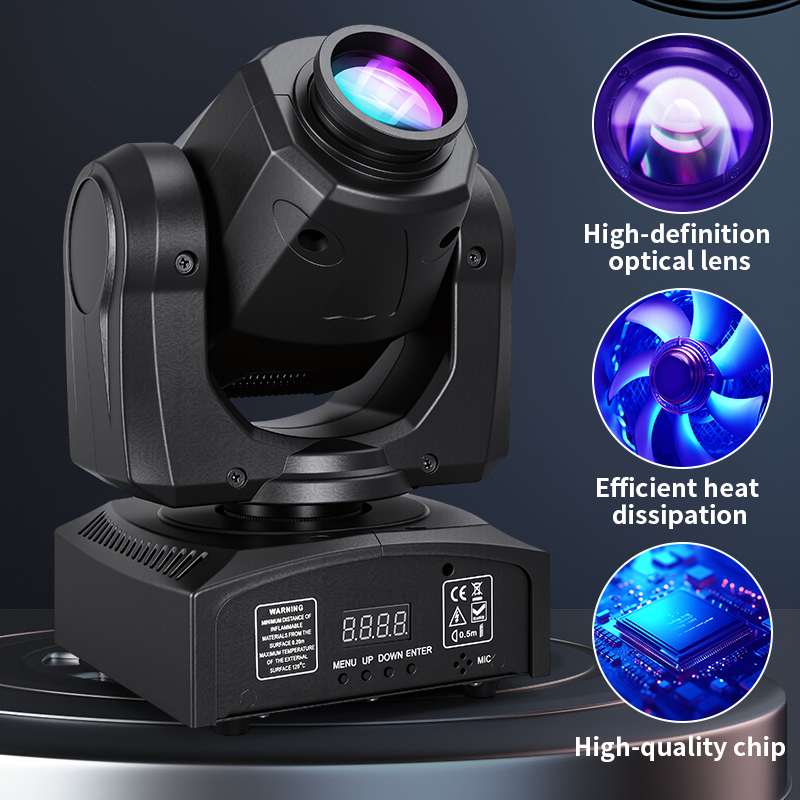

Technical Parameters:
Voltage:ac100-240v,50-60hz
Power:60w
Light source:1pcs 60w white light beads

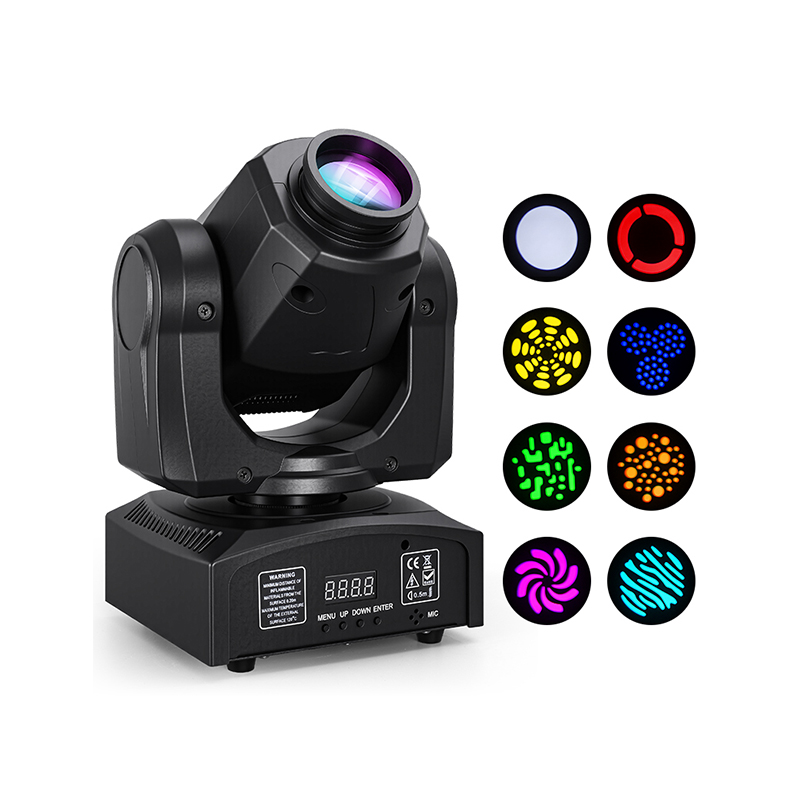

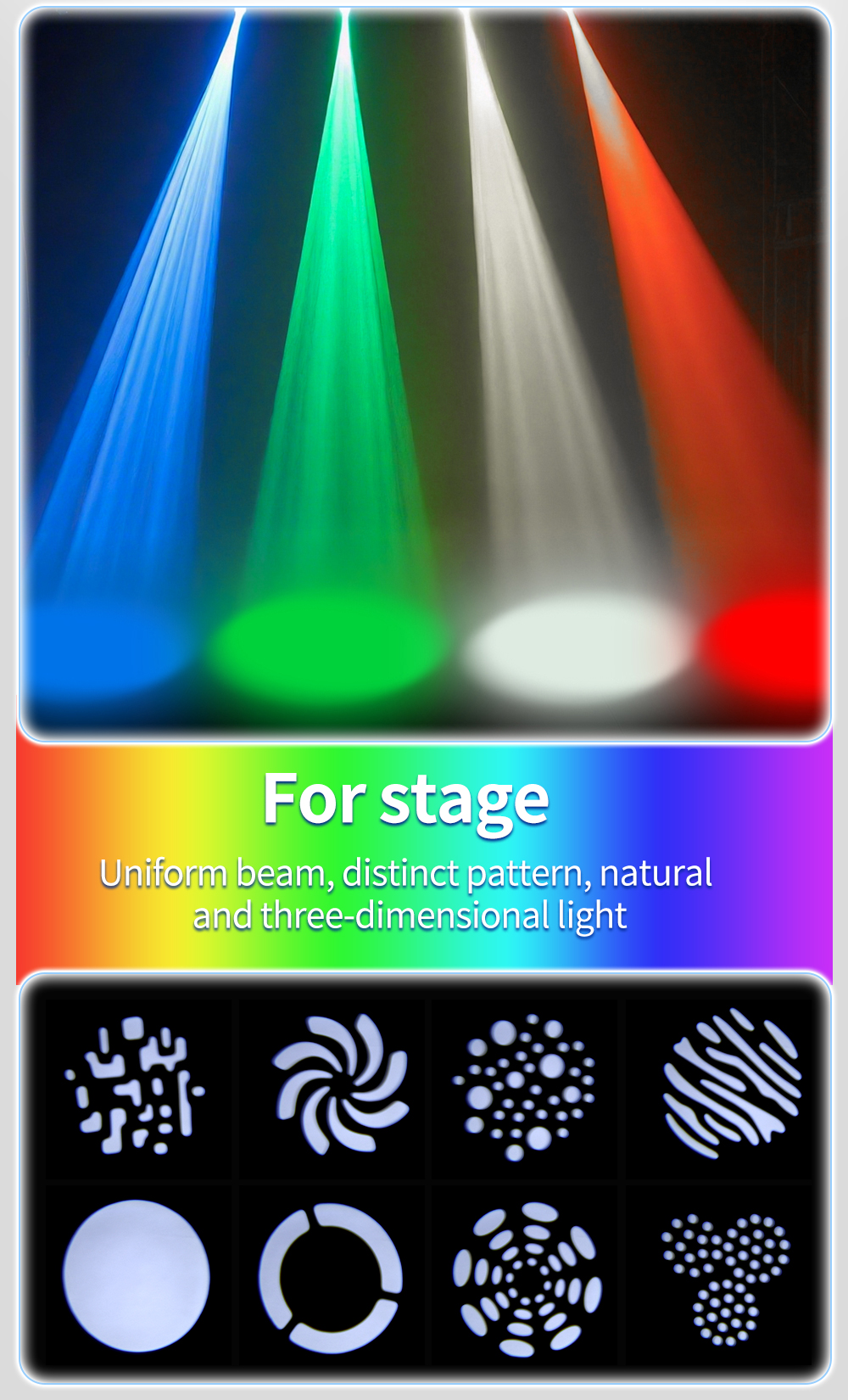

Patterns: 8 patterns
Color:8 colors
Channel: 9/11ch
Control modes: voice-activated, master-slave, self-propelled, dmx

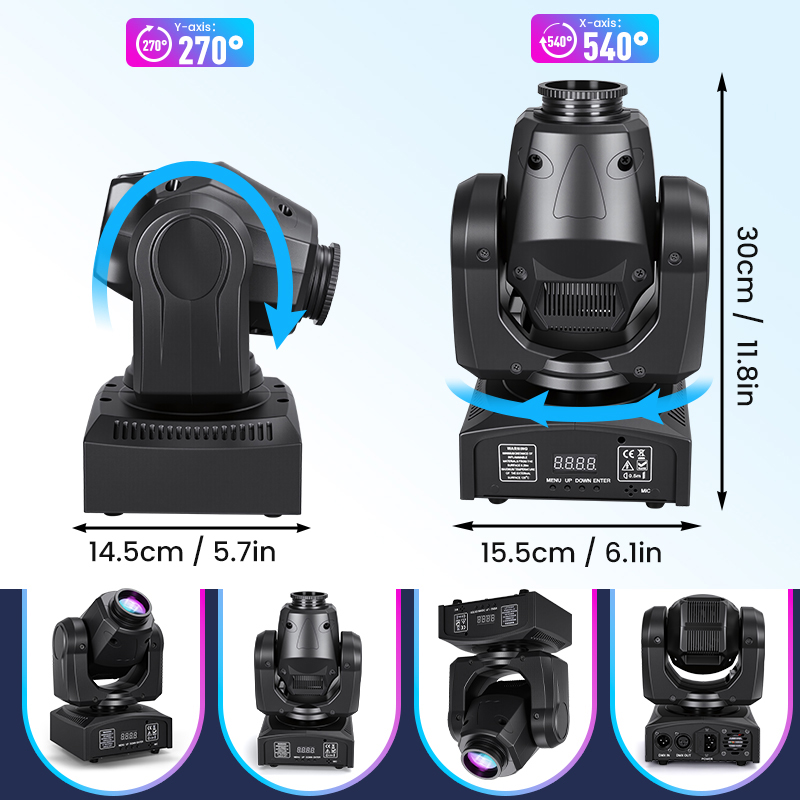

X-AXIS:540°
Y-AXIS:270°
Manual focus
LED STAGE LIGHTING EQUIPMENT INSTRUCTION MANUAL

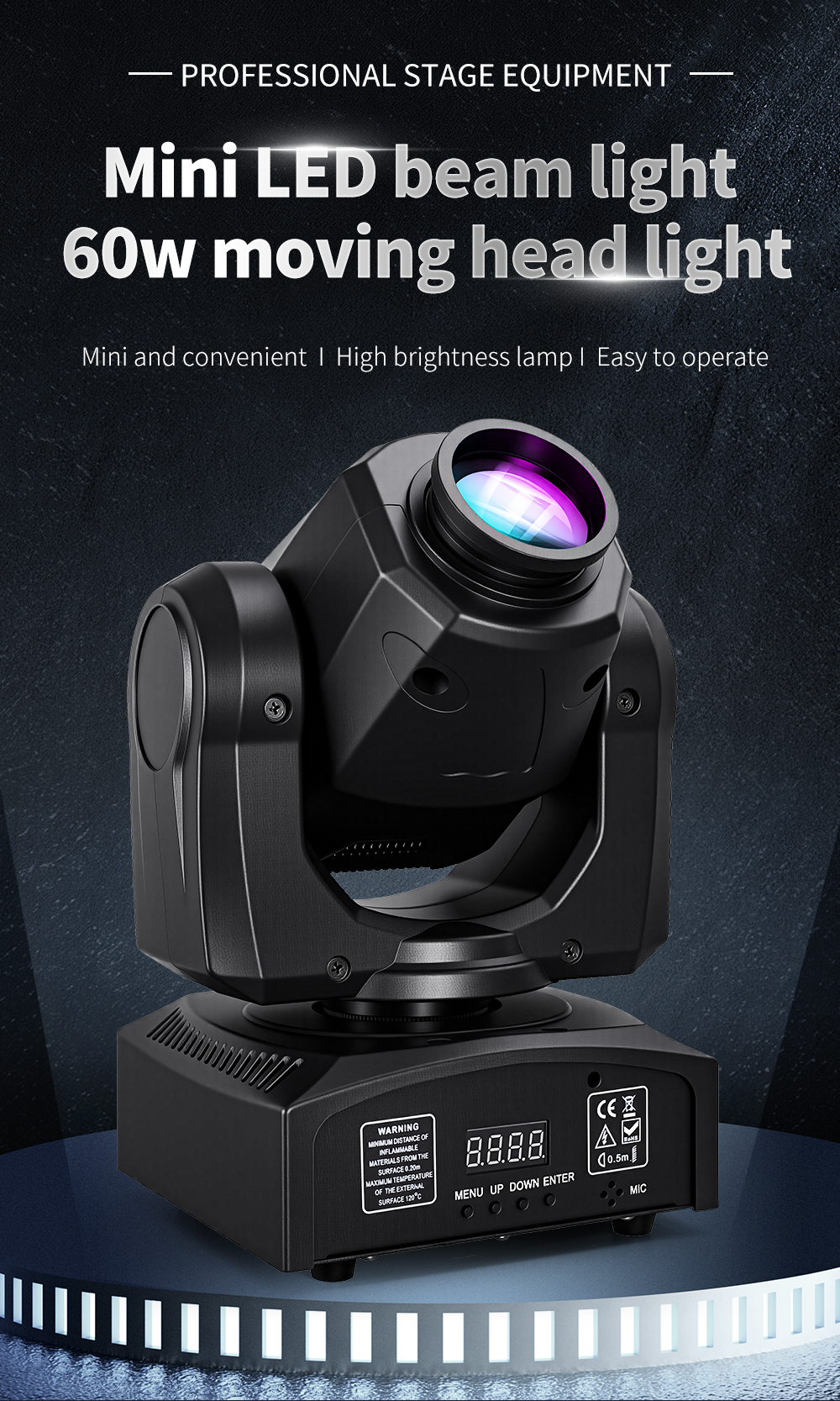

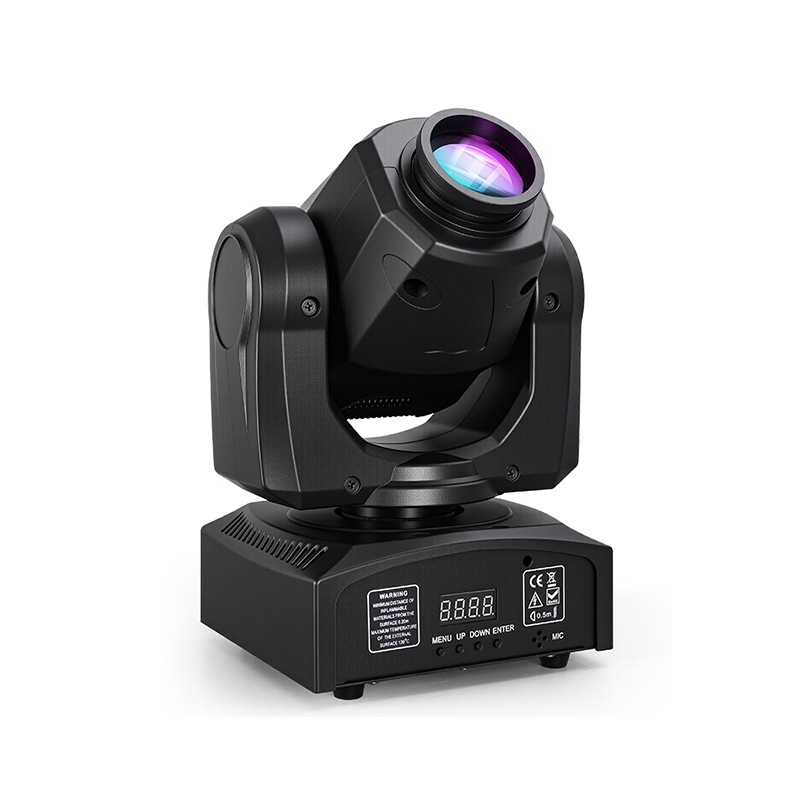

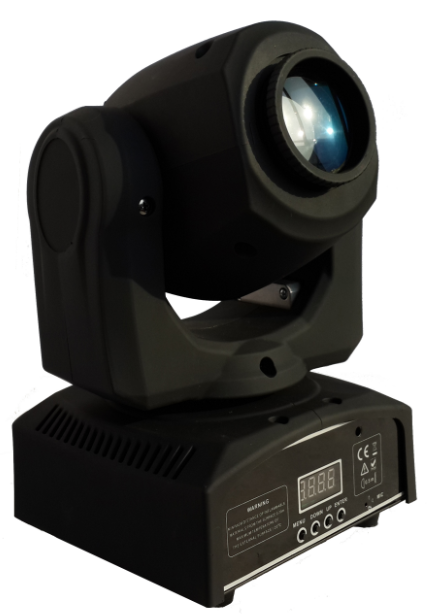

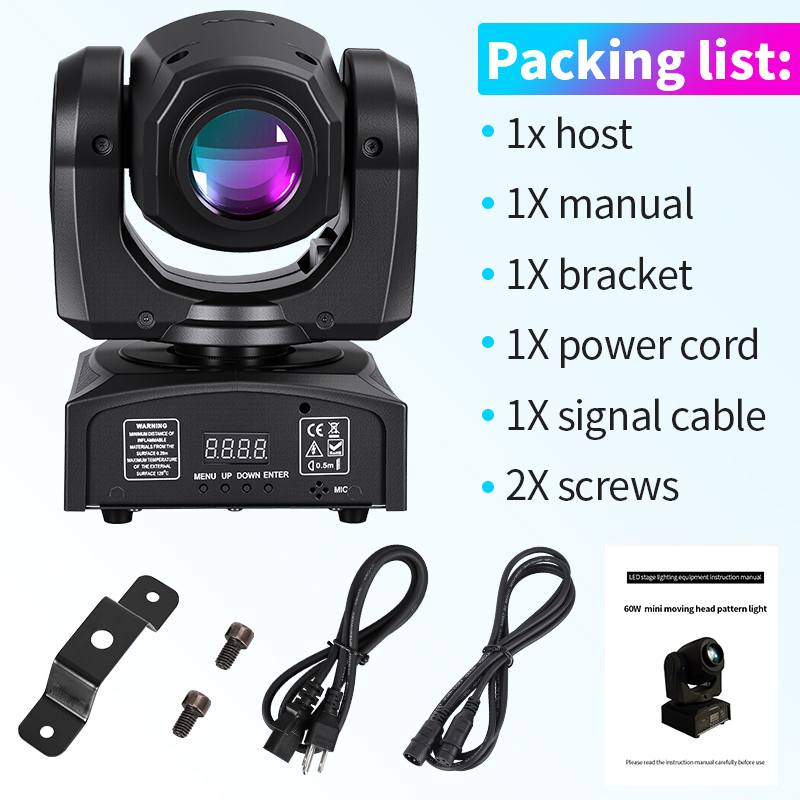

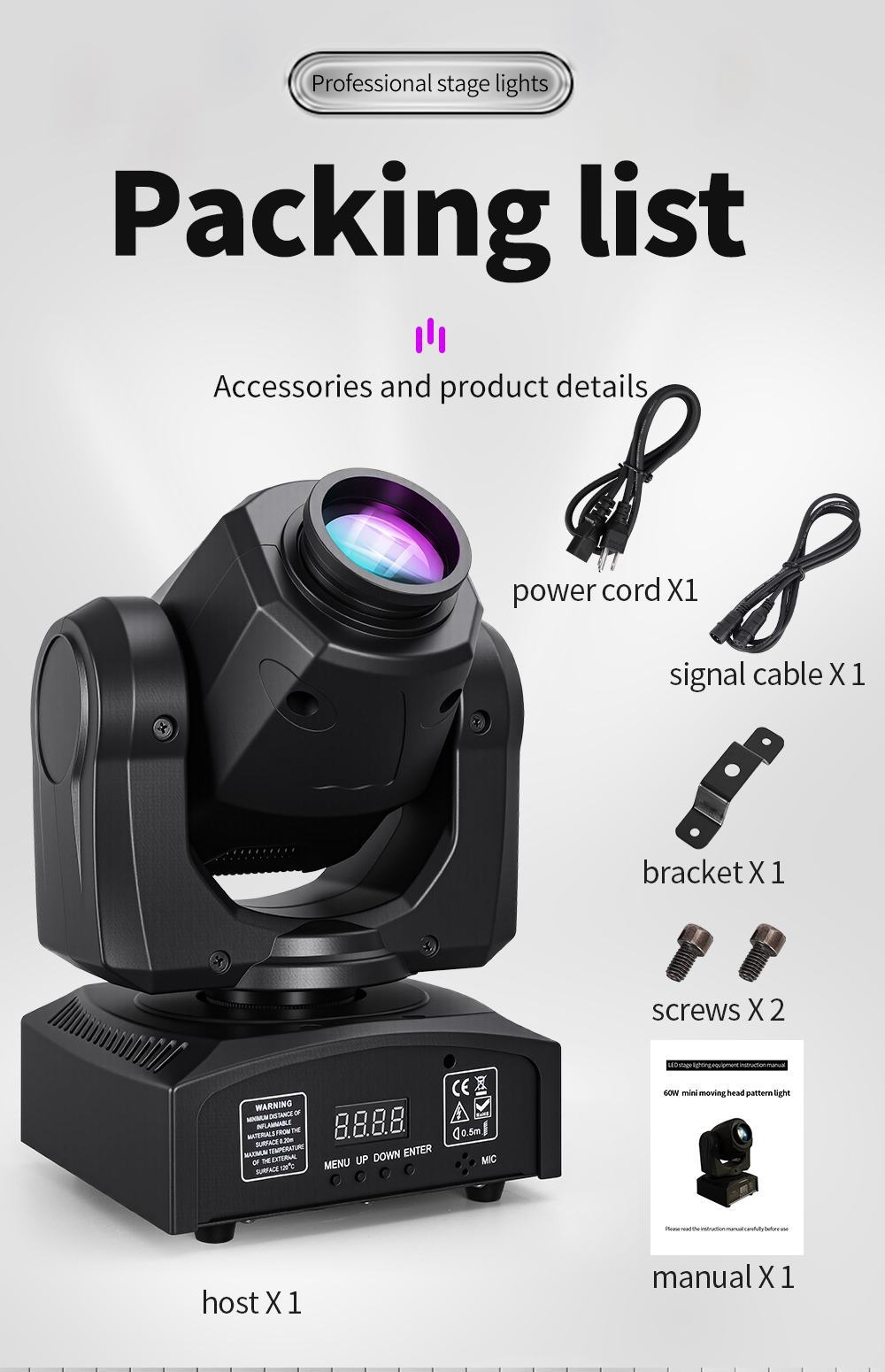

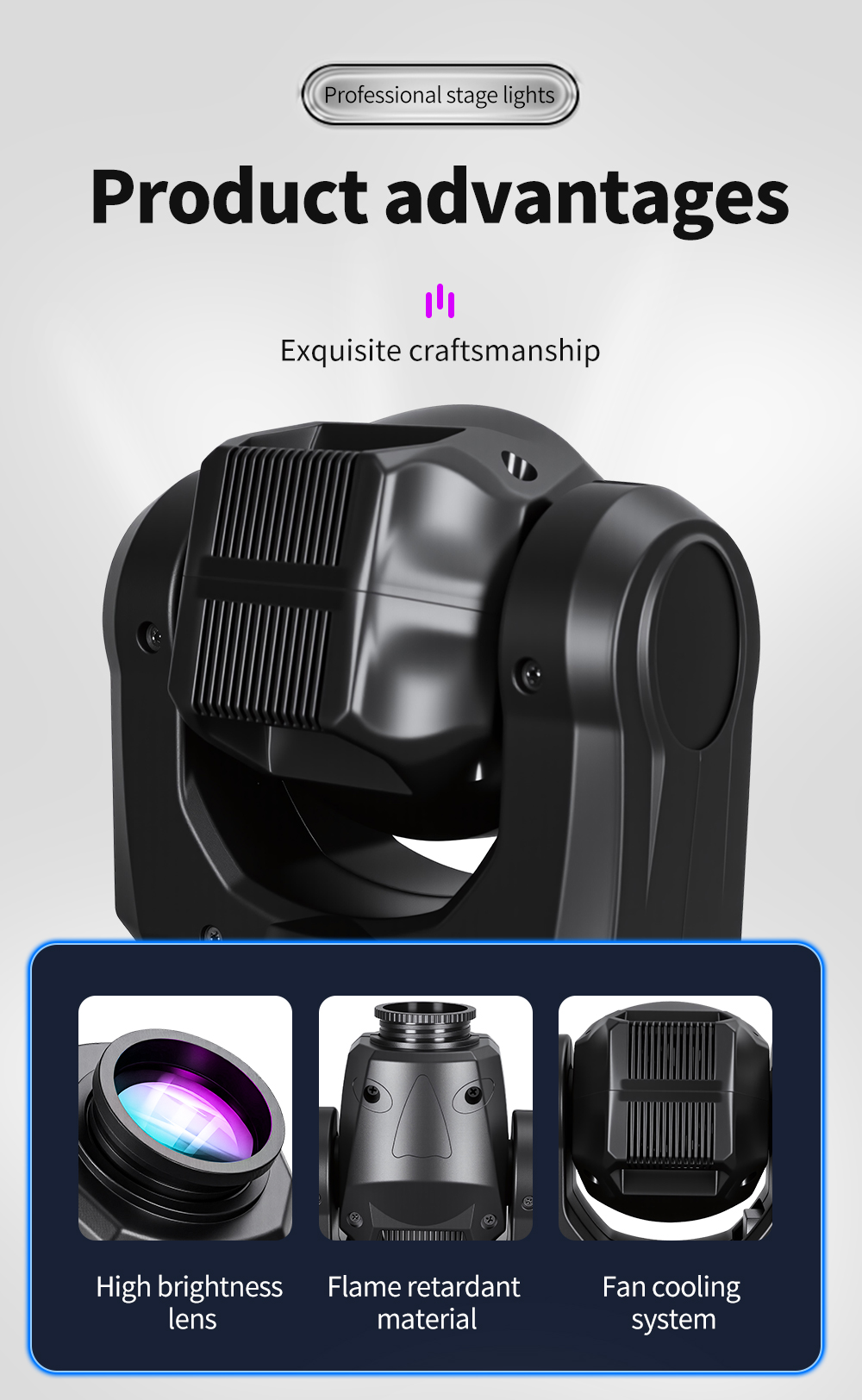

60W MINI MOVING HEAD GOBO
Please read the instruction manual carefully before use

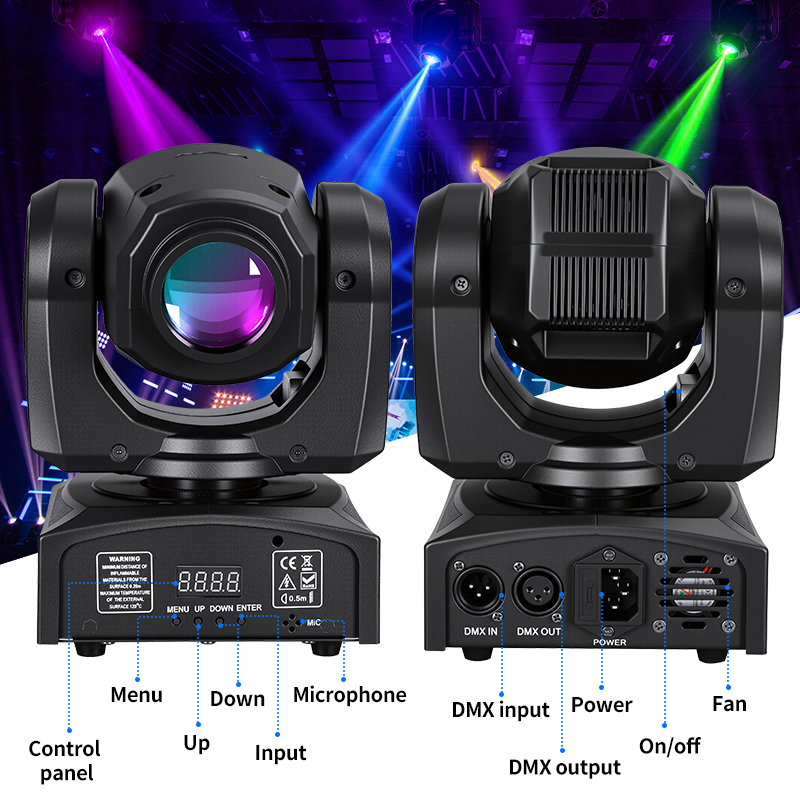

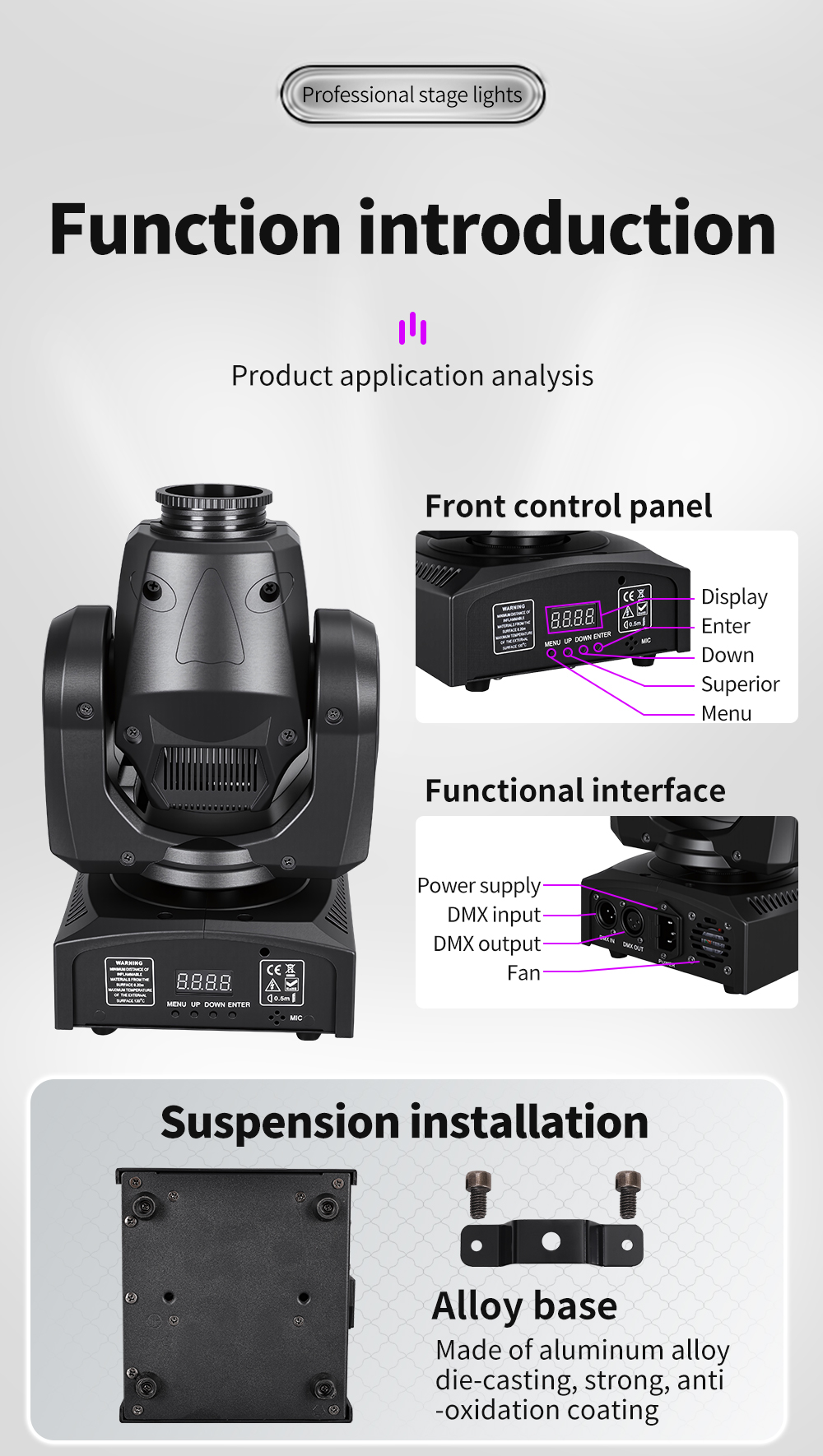

Functional description
Addr | A001-A512 | 512 address settings |
CHnd | 11CH | 11-channel setup |
9CH | 9-channel setup | |
SLnd | MAST | host mode |
SL 1 | Console mode | |
SL 2 | Submachine mode | |
SHnd | SH 0 | Effectiveness 0 (recommended) |
SH 1 | Effect 1 | |
SH 2 | Effect 2 | |
SH 3 | Effect 3 | |
Soud | on | Voice-activated opening |
oFF | Voice-activated shutdown | |
SEnS | 0-99 | Voice-activated sensitivity body adjustment |
bLAnd | bLAc | Zeroing without 512 signals |
Auto | Self-propelled without 512 signals | |
Soun | No 512 signaling voice-activated | |
HoLd | No 512 signal to maintain last console state | |
LEd | OFF | The screen goes out in 5 seconds |
ON | The screen stays on | |
dISP | no | Showing the reverse |
YES | Display positive | |
rPAN | no | xMotor positive |
YES | X MOTOR REVERSED | |
rTiL | no | The y-motor is spinning positively |
REST | YES | System reset |
11 channels
Passage | Function | Description |
1 | Horizontal operation | 0-255 |
2 | Horizontal fine-tuning | 0-255 |
3 | Vertical operation | 0-255 |
4 | Vertical fine-tuning | 0-255 |
5 | Colors |
|
0-139 | Color selection | |
140-255 | Automatic color change. Slow to fast | |
6 | Patterns |
|
0-63 | Fixed pattern | |
64-127 | Pattern jitter | |
128-255 | Automatic pattern change from slow to fast | |
7 | Strobe | 0-255 |
8 | Dimming | 0-255 |
9 | Horizontal and vertical running speeds | 0-255 |
10 | Automatic mode |
|
0-59 | other channel roles | |
60-84 | Auto Mode 3 | |
85-109 | Automatic mode 2 | |
110-134 | Auto Mode 1 | |
135-159 | Auto Mode 0 | |
160-184 | Sound Hole Mode 3 | |
185-209 | Sound Hole Mode 2 | |
210-234 | Sound Hole Mode 1 | |
235-255 | Sound Hole Mode 0 | |
11 | Reset | 250-255 (5 seconds) |
