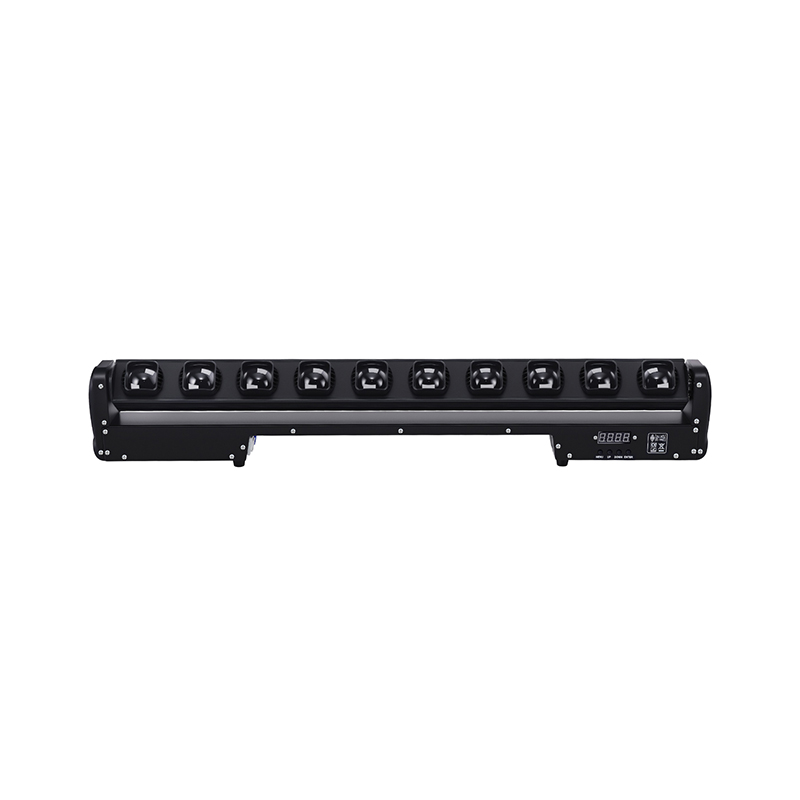

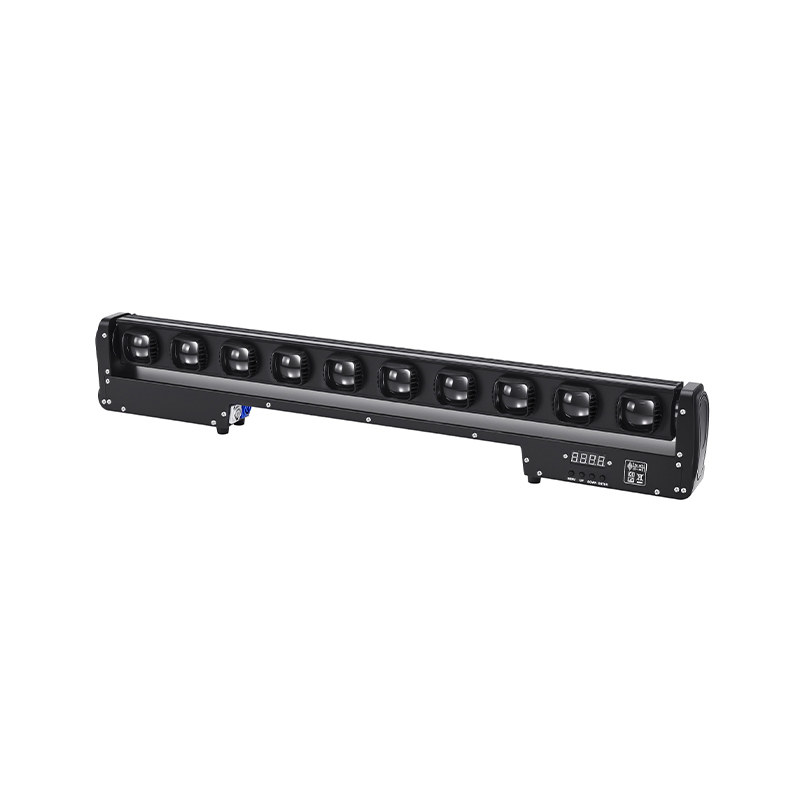

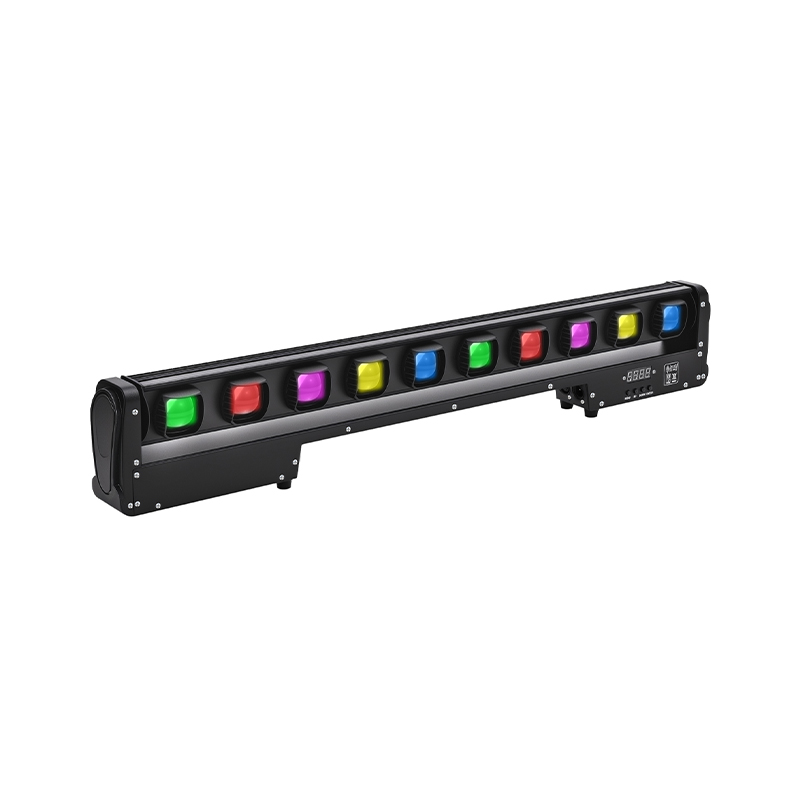

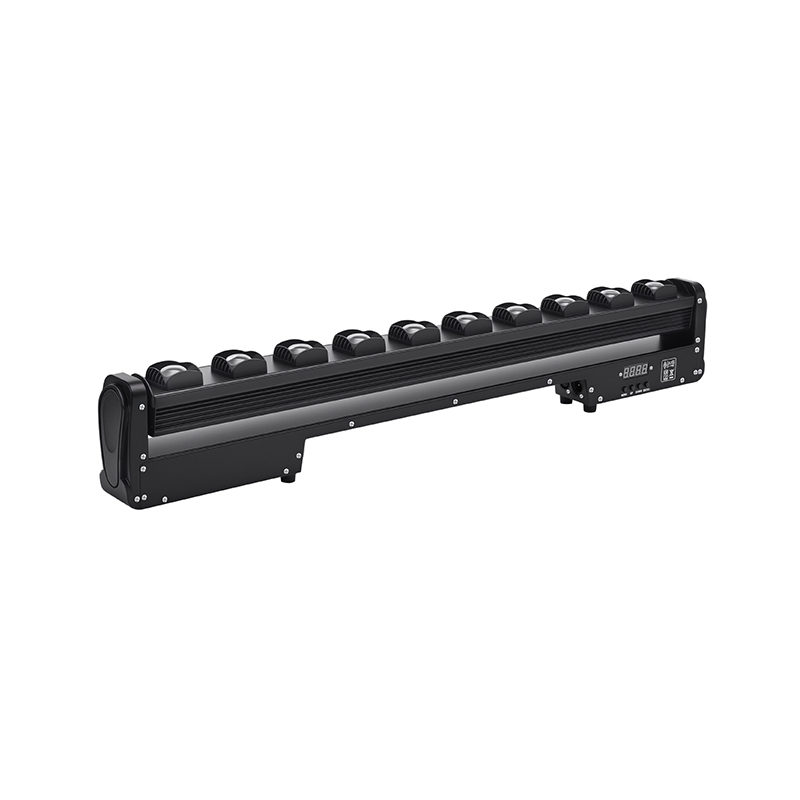

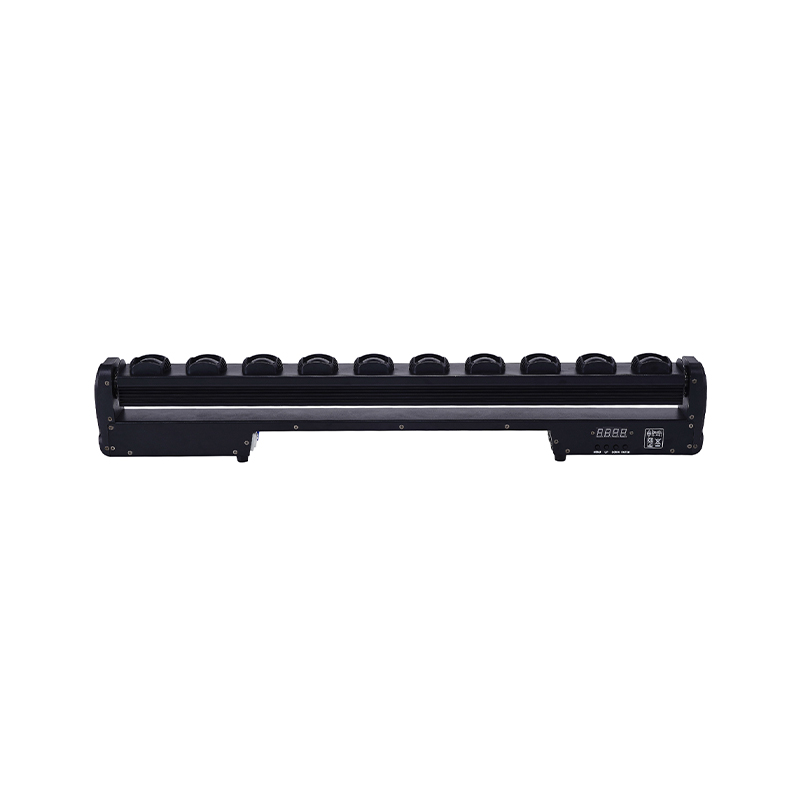

Professional DJ Disco Party Night Club Dance Floor Bar Equipment 10x15W RGBW LED Strip Beam Moving Head Light Stage Lighting

Professional DJ Disco Party Night Club Dance Floor Bar Equipment 10x15W RGBW LED Strip Beam Moving Head Light Stage Lighting

MJ-MH-010 10x15W
Voltage AC100-240V 5060Hz, Power 1025W, Lamp 10 4-in-1 LEDs, Control DMX512, Auto, Master-Slave, Voice Control, with RDM function. Channels CH7, CH13, CH43, Dimming 32-bit 0-100% linear dimming, Features Y-shaking head + beam + strobe. Operating temperature -30°C to 50°C, Strobe frequency 1-30Hz. Appearance Metal, black. Connection DMX512 inputoutput Power inputoutput. IP rating IP20

Consult

Features Technical Indicators Overall Dimension

1、Display panel and key definitions

Menu UP Down Enter

Menu key: Select function

Up key: Increment parameters

Down key: Decrease the parameter

Confirm Button: Confirm and Save

2、Menu Function

After powering on and turning on the device, press the menu key. The menu function table will appear one by one. Use the up or down keys to modify the function parameters. Press the confirm key to save the current function and parameters (after saving, there will be power-off memory).

Menu Function List：

A001	A512	Set the address code, modify the address code upward or downward (A001~A512), and press the confirm key to save.
CH7	CH43	Switch the CH7, CH13, and CH43 channels up or down. Press the confirm key to save.
M000	M126	Built-in effects: 127 types. You can adjust the built-in effects either upwards or downwards. Press the confirmation key to save.
S000	S255	Adjust the running speed of the built-in effect upwards or downwards (S000 to S255), and confirm the key to save.
R255	R000	Increase or decrease the brightness of the red LED (from R000 to R255), and press the confirmation key to save.
G255	G000	Increase or decrease the brightness of the green LED (G000 to G255), and press the confirmation key to save.。
B255	B000	Increase or decrease the brightness of the blue LED (from B000 to B255), and press the confirmation key to save.
W255	W000	Increase or decrease the brightness of the white LED (values range from W000 to W255), and press the confirmation key to save.
Soud	Soud	Voice control mode
M000	M255	Adjust the Y-axis motor parameters (from M000 to M255) either upwards or downwards, and press the confirm key to save.
T000		Display the temperature. For example, T045 indicates that the current lamp temperature is 45°C. If the 10K thermistor is not installed, T000 will be displayed.

3、Master-slave machine control

Two or more identical lighting fixtures are connected with DMX three-core signal cables. All fixtures are set with any address codes ranging from A001 to A512. Designate any one fixture as the master, and the rest as slaves. When the master adjusts effects such as gradual change, pulse change, jump change, sound control, dimming, or auto-run, all slave fixtures will synchronize these effects (gradual change, pulse change, jump change, sound control, dimming, auto-run) in real time.

Special Attention：1、Only one master unit can be set for a group of lighting fixtures. If there are multiple master units, all fixtures will flash randomly without synchronization.

2、All lighting fixtures can only function in master-slave mode when the DMX512 console is turned off.

4、Factory Setting

When any address code from A001 to A512 is set, press and hold the MENU button for 5 seconds to enter the factory setting. The factory setting mainly includes functions such as output power per channel of the lighting fixture, fan setting mode, temperature protection point setting, and parameter sending. To exit any mode in the factory setting, press the MENU button for 5 seconds.

Factory Setup Mode Table:

R255	R032	Increase or decrease the current of the red LED (R032-R255) upwards or downwards, and press the confirmation key to save.
G255	G032	Increase or decrease the current of the green light bulbs (G032-G255), and confirm the key to save.
B255	B032	Increase or decrease the current of the blue LED (B032-B255) upwards or downwards, and press the confirmation key to save.
W255	W032	Increase or decrease the current of the white LED bulbs (W032-W255), and confirm the key to save.
M000	M255	Increase or decrease the Y-axis motor rotation speed (from M000 to M255), and confirm the key to save.
FAN0	FAN1	Fan settings: The fan on FAN0 starts immediately upon power-on. The fan on FAN1 starts when it reaches the preset temperature protection point. The settings are saved by the confirmation key.
T040	T070	Increase or decrease the temperature parameters (40℃ - 70℃) by clicking up or down, then press the "Confirm" key to save.
Send	Send	Send the factory setting parameters of this machine upwards or downwards to all the other three-core signal line parallel-connected lamps, confirm the sending of parameters by pressing the menu key for 5 seconds to exit, and deny the sending by pressing the confirmation key to cancel the transmission.

5、DMX512 supervisory control desk

After powering on, set the address codes of all the lamps. Then, connect all the lamps in parallel using three-core signal wires to the DMX512 console. The address codes will stop flashing, indicating that the DMX512 console signal has been sent to the lamps. Use the DMX512 console to control the relevant functions according to the descriptions of each channel.

CH7 Channel Description ：

Channel	Channel value	Basic function
1	000-255	Y-axis motor
2	000-255	Y-axis motor speed
3	000-255	Linear Dimming of Red Light Beads
4	000-255	Linear Dimming of Green Light Beads
5	000-255	Linear Dimming of Blue Light Beads
6	000-255	Linear Dimming of White Light Beads
7	000-255	Reset: If the parameter value is within the range of 150-255, the entire machine will reset. On the console, the parameter value must first be reduced to below 10, and then pushed to the range of 150-255 before it can be used. Parameter values within the range of 000-149 are invalid and cannot be reset.

CH13 Channel Description：

Channel	Channel value	Basic function
1	000-255	Y-axis motor
2	000-255	Y-axis motor speed
3	000-255	General dimming control
4	000-255	Flicker
5	000-255	Linear Dimming of Red Light Beads
6	000-255	Linear Dimming of Green Light Beads
7	000-255	Linear Dimming of Blue Light Beads
8	000-255	Linear Dimming of White Light Beads
9	000-255	pattern
10	000-255	speed
11	000-255	background color
12	000-255	Dimming of Background Color
13	000-255	Reset: If the parameter value is within the range of 150-255, the entire machine will reset. On the console, the parameter value must first be reduced to below 10, and then pushed to the range of 150-255 before it can be used. Parameter values within the range of 000-149 are invalid and cannot be reset.

CH43 Channel Description：

Channel	Channel value	Basic function
1	000-255	Y-axis motor
2	000-255	Y-axis motor speed
3	000-255	Linear Dimming of Red Light Beads
4	000-255	Linear Dimming of Green Light Beads
5	000-255	Linear Dimming of Blue Light Beads
6	000-255	Linear Dimming of White Light Beads
…	…	… …
39	000-255	Linear Dimming of the Tenth Red Light Bead
40	000-255	Linear Dimming of the Tenth Green Light Bead
41	000-255	Linear Dimming of the Tenth Blue Light Bead
42	000-255	Linear Dimming of the Tenth White Light Bead
43	000-255	Reset: If the parameter value is within the range of 150-255, the entire machine will reset. On the console, the parameter value must first be reduced to below 10, and then pushed to the range of 150-255 before it can be used. Parameter values within the range of 000-149 are invalid and cannot be reset.

6、Pattern effect(Tip: Mode code 9 to 120, the background color can be changed by sliding RGBW.)

Channel value	Mode Code	Effect
0-1	0	No-effect
2-3	1	Effect 1
4-5	2	Effect 2
6-7	3	Effect 3
8-9	4	Effect 4
10-11	5	Effect 5
12-13	6	Effect 6
14-15	7	Effect 7
16-17	8	Effect 8
18-19	9	Effect 9
20-21	10	Effect 10
22-23	11	Effect 11
24-25	12	Effect 12
26-27	13	Effect 13
28-29	14	Effect 14
30-31	15	Effect 15
32-33	16	Effect 16
34-35	17	Effect 17
36-37	18	Effect 18
38-39	19	Effect 19
40-41	20	Effect 20
42-43	21	Effect 21
44-45	22	Effect 22
46-47	23	Effect 23
48-49	24	Effect 24
50-51	25	Effect 25
52-53	26	Effect 26
54-55	27	Effect 27
56-57	28	Effect 28
58-59	29	Effect 29
60-61	30	Effect 30
62-63	31	Effect 31
64-65	32	Effect 32
66-67	33	Effect 33
68-69	34	Effect 34
70-71	35	Effect 35
72-73	36	Effect 36
74-75	37	Effect 37
76-77	38	Effect 38
78-79	39	Effect 39
80-81	40	Effect 40
82-83	41	Effect 41
84-85	42	Effect 42
86-87	43	Effect 43
88-89	44	Effect 44
90-91	45	Effect 45
92-93	46	Effect 46
94-95	47	Effect 47
96-97	48	Effect 48
98-99	49	Effect 49
100-101	50	Effect 50
102-103	51	Effect 51
104-105	52	Effect 52
106-107	53	Effect 53
108-109	54	Effect 54
110-111	55	Effect 55
112-113	56	Effect 56
114-115	57	Effect 57
116-117	58	Effect 58
118-119	59	Effect 59
120-121	60	Effect 60
122-123	61	Effect 61
124-125	62	Effect 62
126-127	63	Effect 63
128-129	64	Effect 64
130-131	65	Effect 65
132-133	66	Effect 66
134-135	67	Effect 67
136-137	68	Effect 68
138-139	69	Effect 69
140-141	70	Effect 70
142-143	71	Effect 71
144-145	72	Effect 72
146-147	73	Effect 73
148-149	74	Effect 74
150-151	75	Effect 75
152-153	76	Effect 76
154-155	77	Effect 77
156-157	78	Effect 78
158-159	79	Effect 79
160-161	80	Effect 80
162-163	81	Effect 81
164-165	82	Effect 82
166-167	83	Effect 83
168-169	84	Effect 84
170-171	85	Effect 85
172-173	86	Effect 86
174-175	87	Effect 87
176-177	88	Effect 88
178-179	89	Effect 89
180-181	90	Effect 90
182-183	91	Effect 91
184-185	92	Effect 92
186-187	93	Effect 93
188-189	94	Effect 94
190-191	95	Effect 95
192-193	96	Effect 96
194-195	97	Effect 97
196-197	98	Effect 98
198-199	99	Effect 99
200-201	100	Effect 100
202-203	101	Effect 101
204-205	102	Effect 102
206-207	103	Effect 103
208-209	104	Effect 104
210-211	105	Effect 105
212-213	106	Effect 106
214-215	107	Effect 107
216-217	108	Effect 108
218-219	109	Effect 109
220-221	110	Effect 110
222-223	111	Effect 111
224-225	112	Effect 112
226-227	113	Effect 113
228-229	114	Effect 114
230-231	115	Effect 115
232-233	116	Effect 116
234-235	117	Effect 117
236-237	118	Effect 118
238-239	119	Effect 119
240-241	120	Effect 120
242-243	121	Effect 121
244-245	122	Effect 122
246-247	123	Effect 123
248-249	124	Effect 124
250-251	125	Effect 125
252-253	126	Effect 126
254-255	127	Mode code 9-126 cycles, after mode codes 124, 125, and 126, the colorful wave effect finishes.

7、Technical specification：

voltage: AC100~240V 50/60HZ

power: 10*15W

lamp bead: Ten four-in-one LED light beads

control mode: DMX512, self-propelled, master-slave, voice-controlled, with RDM function.

channel: CH7、CH13、CH43

Dimming: 32-bit linear dimming from 0% to 100%

Feature: Y shaking head + beam + burst flash

Working temperature: -30°C to 50°C

Flicker frequency: 1~30HZ

Appearance: Metal, black

Connection method: DMX512 input/output / power input/output.

IP rating: IP20

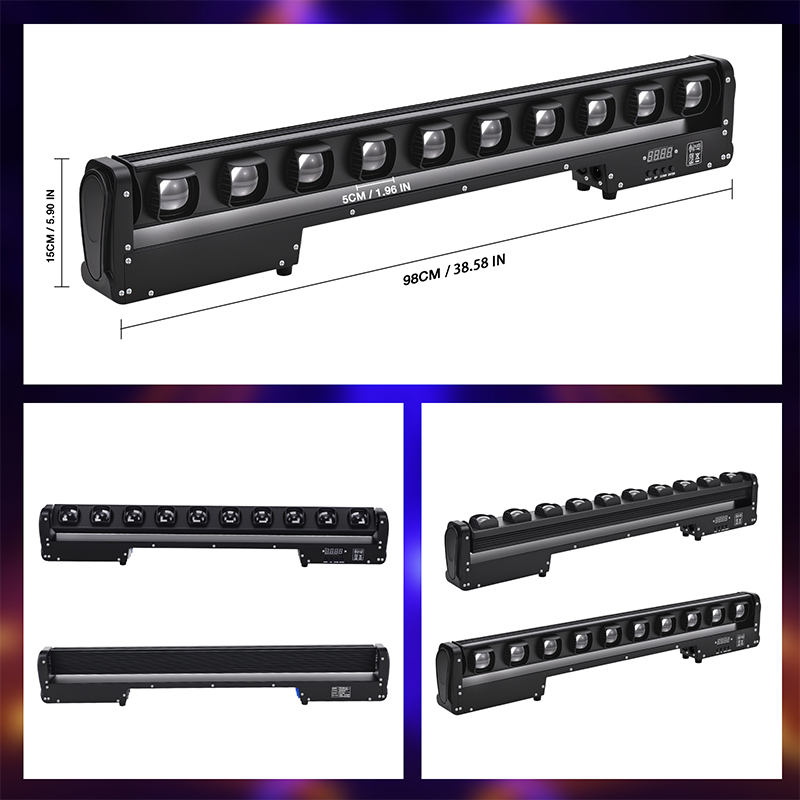

Size: 985*70*160mm

Weight: 5.9kg
