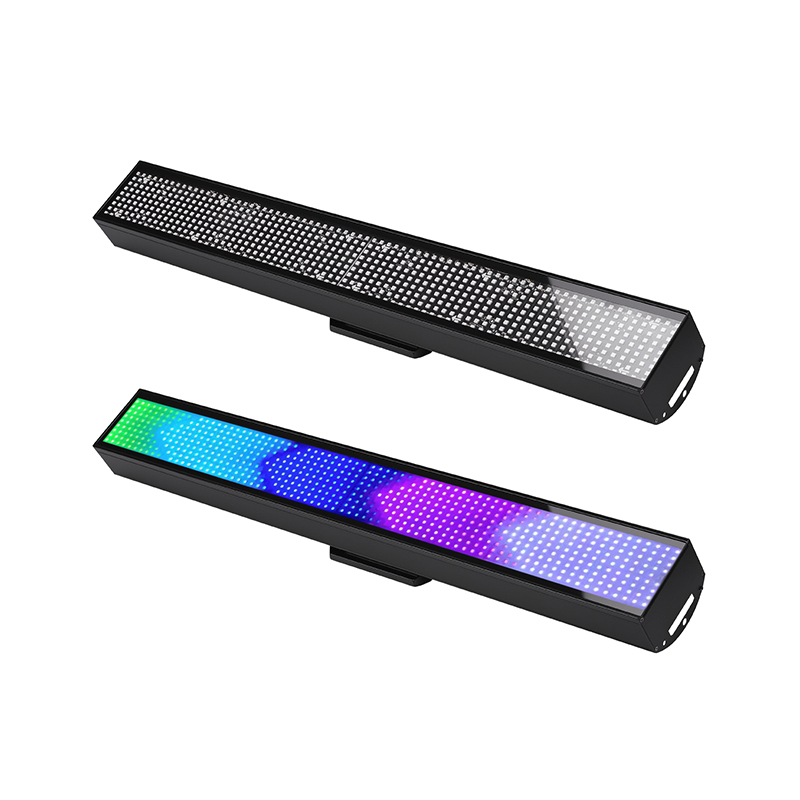

120W RGB 666LEDs Wall Washer Stage Effect Lighting Dynamic Running Chasing for Wedding Party Bar Show RGBW Emitted Color

120W RGB 666LEDs Wall Washer Stage Effect Lighting Dynamic Running Chasing for Wedding Party Bar Show RGBW Emitted Color

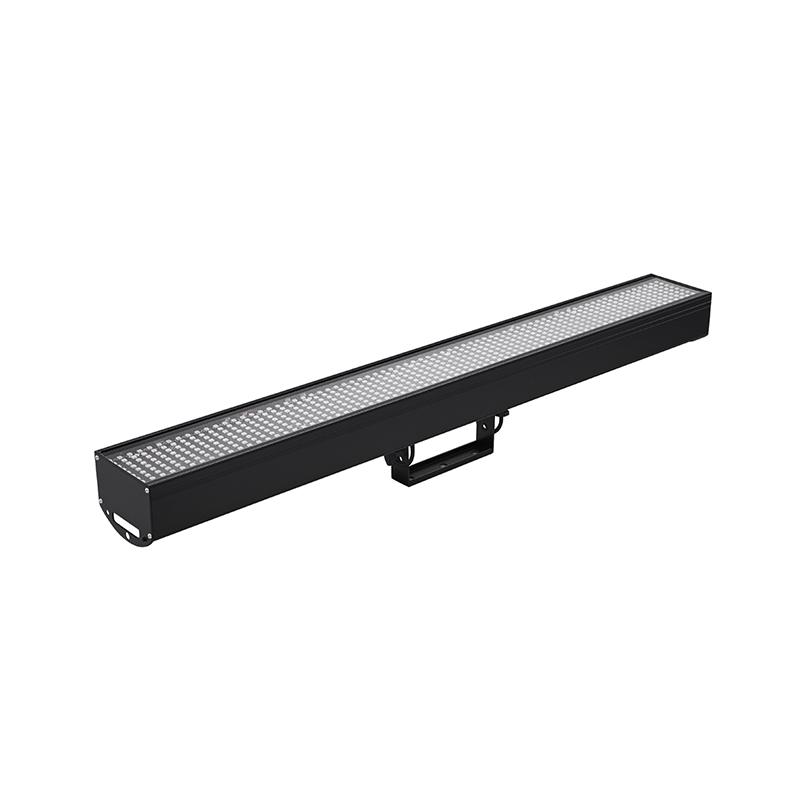

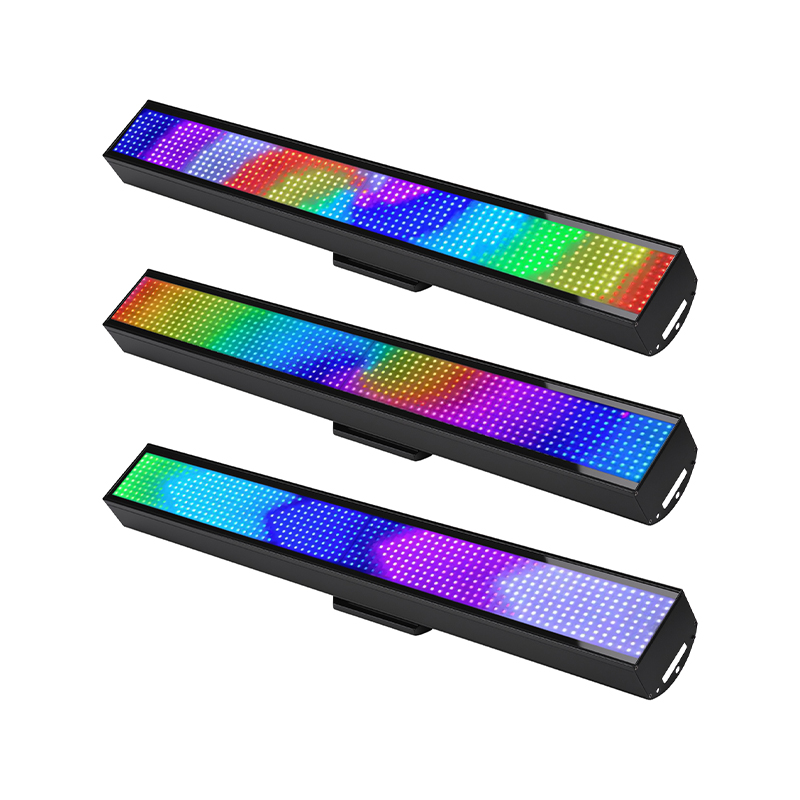

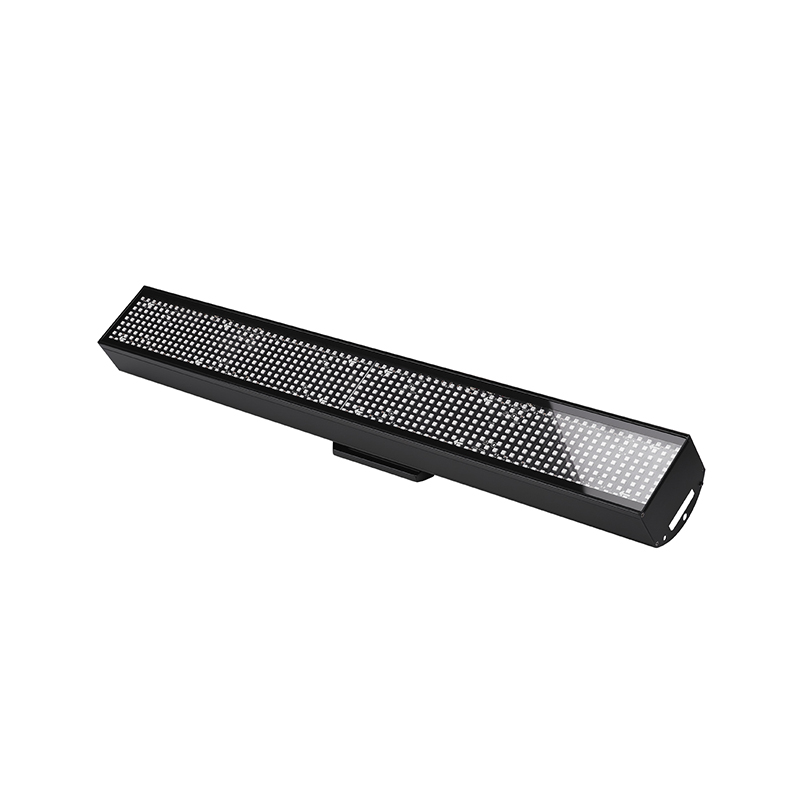

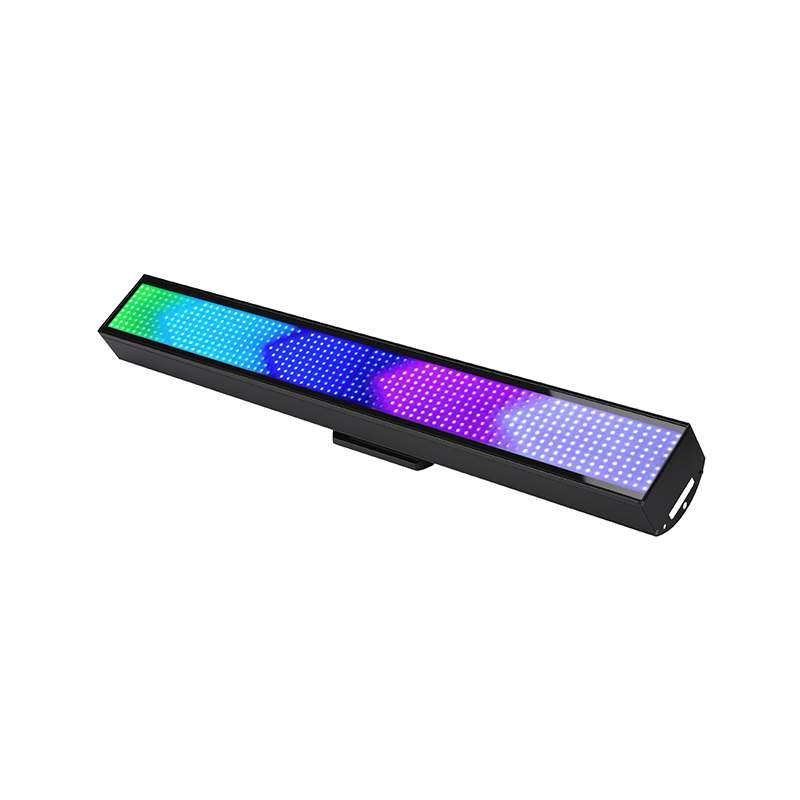

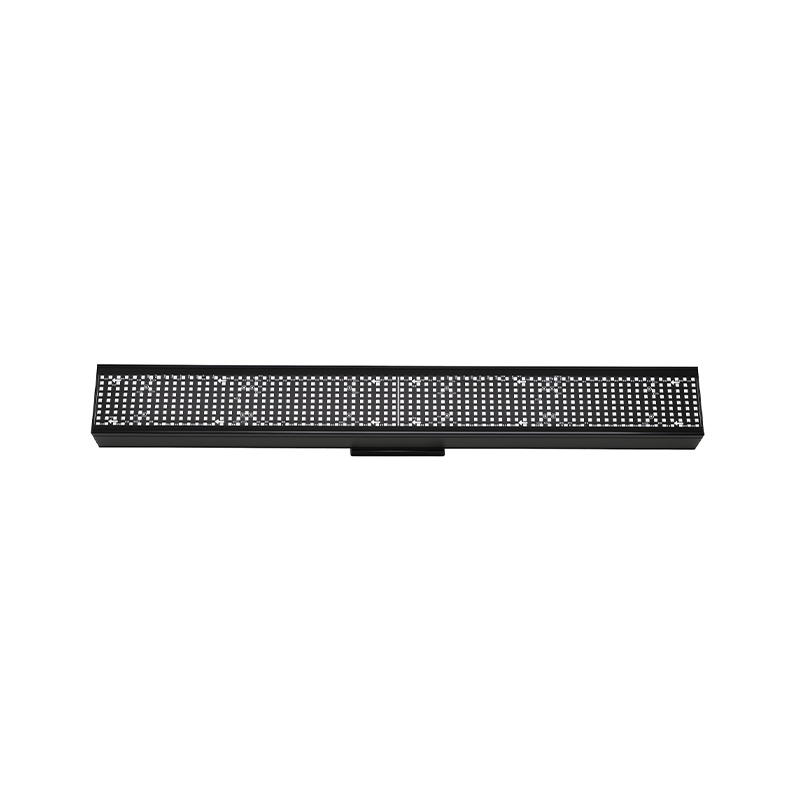

MJ-STR-011 666LEDs
Voltage: AC100-240V 50/60Hz. Power: 120W. Lamp: 666 5050 tri-color LEDs. Control: DMX512, auto, master-slave, voice control, with RDM function. Channels: C003, C013, C346, C221. Dimming: 32-bit 0-100% linear dimming. Features: 80-segment running mode, wash mode, and strobe mode. Operating temperature: -30°C to 50°C. Strobe frequency: 1-30Hz. Appearance: Metal, black. Connections: DMX512 input/output / power input/output. IP rating: IP20

Consult

Features Technical Indicators Overall Dimension

1、Display Panel and Button Definitions

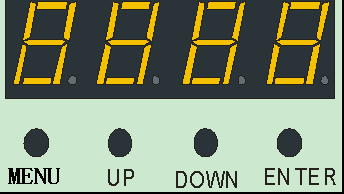

· Menu Button：Select functions

· Up Button：Increment parameters

· Down Button：Decrement parameters

· Confirm Button：Confirm and save

2、Menu Functions

After power-on, press the Menu Button to cycle through the menu options. Use the Up/Down Buttons to adjust parameters, and the Confirm Button to save settings (which are retained after power-off).

Menu Options:

A001	A512	Adjust the address code (A001–A512) using the Up or Down buttons. Press Confirm to save. Default: A001.
C003	C346	Cycle through channel modes (C003, C013, C87, C222, C346) using the Up or Down buttons. Press Confirm to save. Default: C013.
E000	E255	Adjust Effect 1 parameters (E000–E255) using the Up or Down buttons. Press Confirm to save. Default: E000.
S000	S255	Adjust the speed of built-in effects (S000–S255) using the Up or Down buttons. Press Confirm to save. Default: S000.
SO00	SO99	Sound Active Mode
R255	R000	Adjust the brightness of red LEDs (R000–R255) using the Up or Down buttons. Press Confirm to save. Default: R255.
G255	G000	Adjust the brightness of green LEDs (G000–G255) using the Up or Down buttons. Press Confirm to save. Default: G255.
B255	B000	Adjust the brightness of blue LEDs (B000–B255) using the Up or Down buttons. Press Confirm to save. Default: B255.
T000		Displays temperature (e.g., T045 indicates 45°C). Shows T000 if the 10K thermistor is not installed.

3、Master-Slave Control

Operation Steps

1. Connect two or more identical fixtures with a 3-pin DMX cable.

2. Set each fixture to a unique address code (A001–A512).

3. Designate one fixture as the Master and the rest as Slaves.

4. Ensure Slave fixtures’ displays do not flash.

When the Master runs effects (fade, pulse, jump, sound active, auto run), all Slaves will synchronize with these effects.

Important Notes

1. Only one Master per group. Multiple Masters will cause fixtures to flash erratically and lose synchronization.

2. The Master-Slave function only works when the DMX512 console is powered off.

4、Factory Settings

Access & Exit

· Entry: At any address code (A001–A512), press and hold the Menu Button for 5 seconds to enter Factory Settings.

· Exit: Press and hold the Menu Button for 5 seconds to exit any Factory Settings mode.

Factory Settings Table：

R000	R255	Adjust the red LED current (R000–R255) using the Up or Down buttons. Press Confirm to save. Default: R220.
G000	G255	Adjust the green LED current (G000–G255) using the Up or Down buttons. Press Confirm to save. Default: G220.
B000	B255	Adjust the blue LED current (B000–B255) using the Up or Down buttons. Press Confirm to save. Default: B220.
FAN0	FAN1	Fan Mode: FAN0: Fan activates when LEDs are powered on. FAN1: Fan activates only when the temperature threshold (set via T040–T070) is reached. Press Confirm to save.
T040	T-70	Set the temperature protection threshold. Adjust parameters (40°C–70°C) using the Up or Down buttons. Press Confirm to save. Default: 60°C.
DIR0	DIR3	Fx，Default: DIR3
LED0	LED1	Led，Default: LED0
Send	Send	Adjust via Up/Down Buttons to send local factory settings to all fixtures connected via parallel 3-pin signal cables. Success Indicator: Connected fixtures’ displays flash once every 5 seconds during transmission. Confirm & Exit: Hold Menu Button for 5 seconds to save and exit. Cancel Transmission: Press Confirm Button to revoke the send action.

5、DMX512 Console Operation

Setup Procedure

1. Power on the fixtures and set unique address codes (A001–A512).

2. Connect all fixtures in parallel to the DMX512 console using 3-pin signal cables.

3. When address codes stop flashing, the DMX512 console has successfully sent signals to the fixtures.

4. Control functions via the console based on the channel specifications.

C003 Channel Specifications

Channel	Value Range	Basic Function
1	000-255	R Red LED Linear Dimming
2	000-255	G Green LED Linear Dimming
3	000-255	B Blue LED Linear Dimming

C013 Channel Specifications

Channel

Value Range

Basic Function

000-255

Dimming

000-255

RGB Strobe

000-255

Macro Color

000-255

Color Temperature

000-255

Character

000-255

RGB Mode

000-255

RGB Speed

000-255

RGB Background Color

000-255

RGB Background Dimming

000-255

Direction

C87 Channel Specifications

Channel	Value Range	Basic Function
1	000-255	Dimming
2	000-255	RGB Strobe
3	000-255	R
4	000-255	G
5	000-255	B
6	000-255	Macro Color
7	000-255	Color Temperature
8	000-255	Character
9	000-255	RGB Mode
10	000-255	RGB Speed
11	000-255	RGB Background Color
12	000-255	RGB Background Dimming
13	000-255	Direction
14	000-255	LED1
…	…	… …
87	000-255	LED74

C346 Channel Specifications

Channel

Value Range

Basic Function

000-255

Dimming

000-255

RGB Strobe

000-255

Macro Color

000-255

Color Temperature

000-255

Character

000-255

RGB Mode

000-255

RGB Speed

000-255

RGB Background Color

000-255

RGB Background Dimming

000-255

Direction

000-255

LED1

…

… …

346

000-255

LED333

C221 Channel Specifications

Channel	Value Range	Basic Function
1	000-255	R1
2	000-255	G1
3	000-255	B1
…	…	… …
219	000-255	R74
220	000-255	G74
221	000-255	B74

Products Category

120W RGB 666LEDs Wall Washer Stage Effect Lighting Dynamic Running Chasing for Wedding Party Bar Show RGBW Emitted Color

1、Display Panel and Button Definitions

· Menu Button：Select functions

· Up Button：Increment parameters

· Down Button：Decrement parameters

· Confirm Button：Confirm and save

2、Menu Functions

After power-on, press the Menu Button to cycle through the menu options. Use the Up/Down Buttons to adjust parameters, and the Confirm Button to save settings (which are retained after power-off).

Menu Options:

3、Master-Slave Control

Operation Steps

1. Connect two or more identical fixtures with a 3-pin DMX cable.

2. Set each fixture to a unique address code (A001–A512).

3. Designate one fixture as the Master and the rest as Slaves.

4. Ensure Slave fixtures’ displays do not flash.

When the Master runs effects (fade, pulse, jump, sound active, auto run), all Slaves will synchronize with these effects.

Important Notes

1. Only one Master per group. Multiple Masters will cause fixtures to flash erratically and lose synchronization.

2. The Master-Slave function only works when the DMX512 console is powered off.

4、Factory Settings

Access & Exit

· Entry: At any address code (A001–A512), press and hold the Menu Button for 5 seconds to enter Factory Settings.

· Exit: Press and hold the Menu Button for 5 seconds to exit any Factory Settings mode.

Factory Settings Table：

5、DMX512 Console Operation

Setup Procedure

1. Power on the fixtures and set unique address codes (A001–A512).

2. Connect all fixtures in parallel to the DMX512 console using 3-pin signal cables.

3. When address codes stop flashing, the DMX512 console has successfully sent signals to the fixtures.

4. Control functions via the console based on the channel specifications.

C003 Channel Specifications

7、Technical Specifications

· Voltage: AC 100–240V, 50/60Hz

· Power Consumption: 120W

· LED Configuration: 666 x 5050 tri-color (RGB) LEDs

· Control Modes: DMX512, Auto Run, Master-Slave, Sound Active, RDM-capable

· DMX Channels: C003, C013, C346, C221

· Dimming: 32-bit linear dimming (0–100%)

· Key Features:

· 80-segment chasing effects

· Color mixing (chroma)

· Strobe function

· Operating Temperature: -30°C–50°C

· Strobe Frequency: 1–30 Hz

· Housing: Metal, black finish

· Connectivity:

· DMX512 In/Out

· Power In/Out

· IP Rating: IP20 (indoor use)

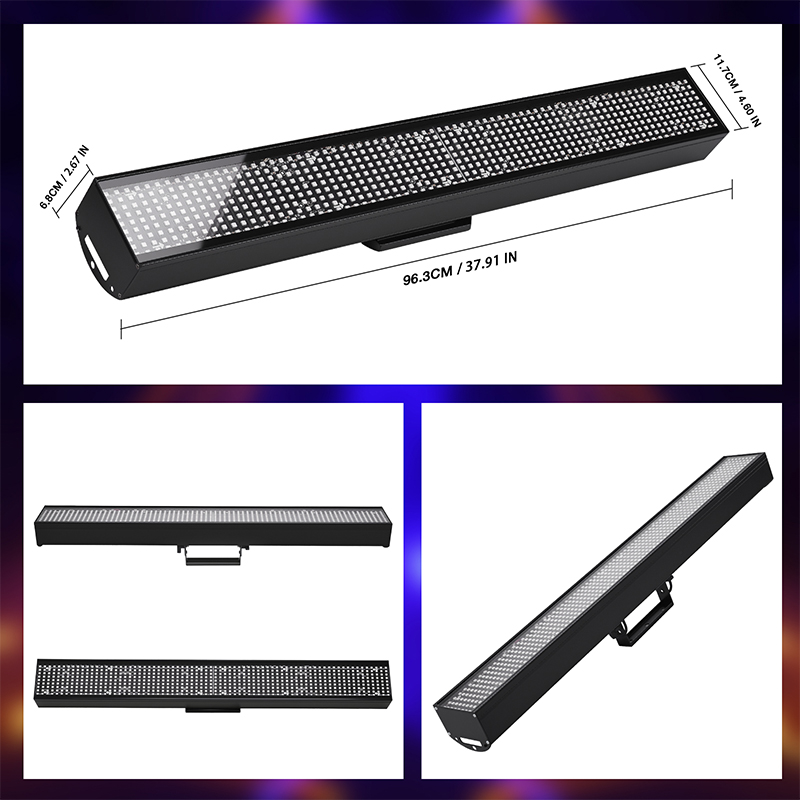

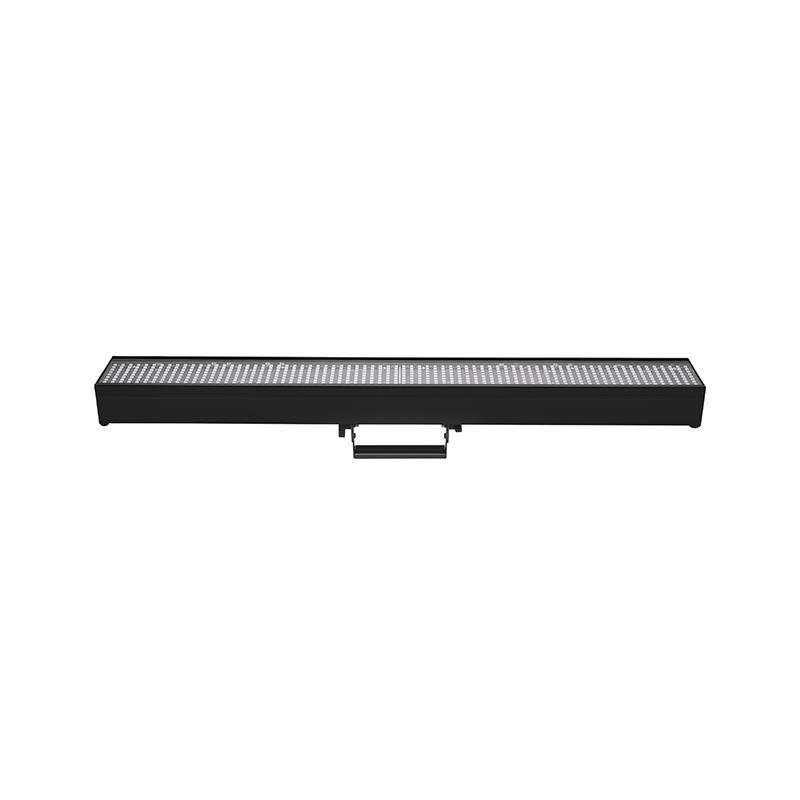

· Dimensions: [965mm * 130mm * 120mm]

· Weight: [3.7kg]
