Power: 160W
Light Source: 1 x 150W White LED Lamp
Gobos: 15 patterns
Colors: 12 color options
Channels: 12CH
Control Modes: Sound Active, Master-Slave, Auto Run, DMX
X-axis Movement: 540°
Y-axis Movement: 180°
Focus Adjustment: Manual Focus

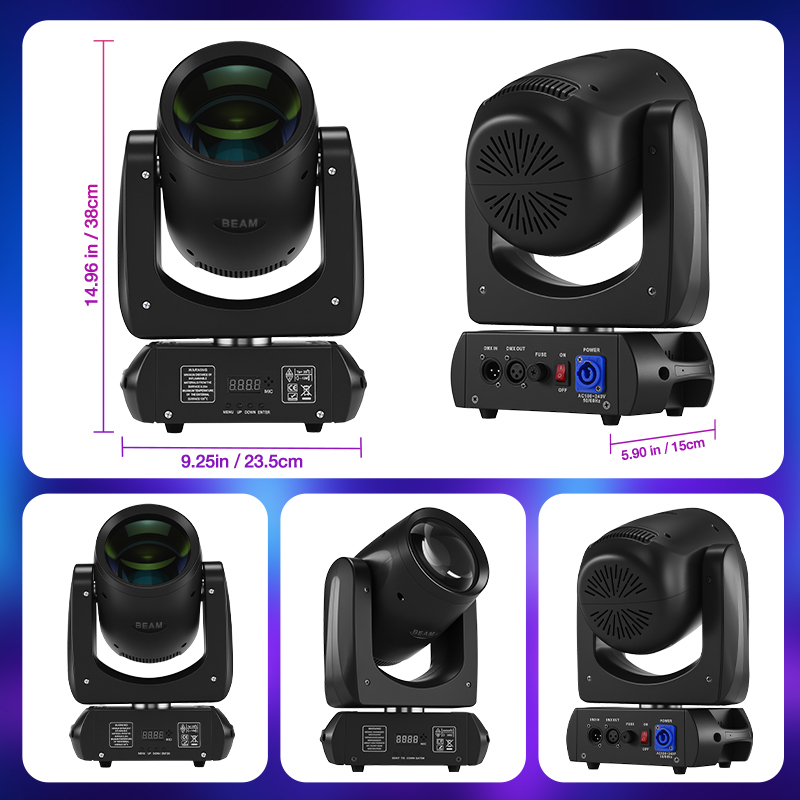

Size: 240mm * 150mm * 355mm
Weight: 5.4kg
Please read the operation manual carefully before use
Functional Description
A001 | d001-d512 | 512 Address Setting |
CHnd | 12CH | Channel Mode |
SLnd | DMh | DMX Mode |
Auto | Auto Mode | |
Soun | Sound Control Mode | |
SLoU | Slow Mode | |
PSEt | NO | X Motor Forward |
YES | X Motor Reverse | |
tSET | NO | Y Motor Forward |
YES | Y Motor Reverse | |
SenS | 0-100 | Sensitivity Adjustment |
LEd | on | Display On |
off | Display Off | |
dISP | off | Display Normal |
on | Display Reverse | |
temp | xxx | Temperature Display |
USr | U100 | Version Number |
FAct | NO |
|
YES | Restore Default Settings |
12 Channels
Channel | Function | Description | |
1 | Horizontal Movement | 0-255 | |
2 | Horizontal Fine Adjustment | 0-255 | |
3 | Vertical Movement | 0-255 | |
4 | Vertical Fine Adjustment | 0-255 | |
5 | Motor Speed | 0-255 | |
6 | Dimming | 0-255 | |
7 | Strobe | 0-255 | |
8 | Color Selection | 0-9,10-19,20-29,30-39,40-49,50-59,60-69， 70-79,80-89，90-99，100-109，110-119 | |
| Color Forward | 120-187 (from fast to slow) | |
| Color Reverse | 188-255 (from slow to fast) | |
9 | Fixed Gobo | 0-5,6-11,12-17,18-23,24-29,30-35,36-41,42-47,48-53,54-59,60-65,66-71,72-77,78-83,84-89 | |
Gobo Shake | 90-95,96-101,102-107,108-113,114-119, 120-125,126-131,132-137,138-143,144-149,150-155,156-161,162-167,168-173,174-179 | ||
Gobo Forward | 180-217 (from fast to slow) | ||
Gobo Reverse | 218-255 (from slow to fast) | ||
10 | Tri-Prism Motor Operation | 0-99: Off; 100-127: On; 128-255: Prism rotation from slow to fast | |
11 |
| 0-49 | |
Fast Auto Run | 50-100 | ||
Slow Auto Run | 101-200 | ||
Sound Control Mode | 201-255 | ||
12 | Reset | 250-255 (5 sec) |
