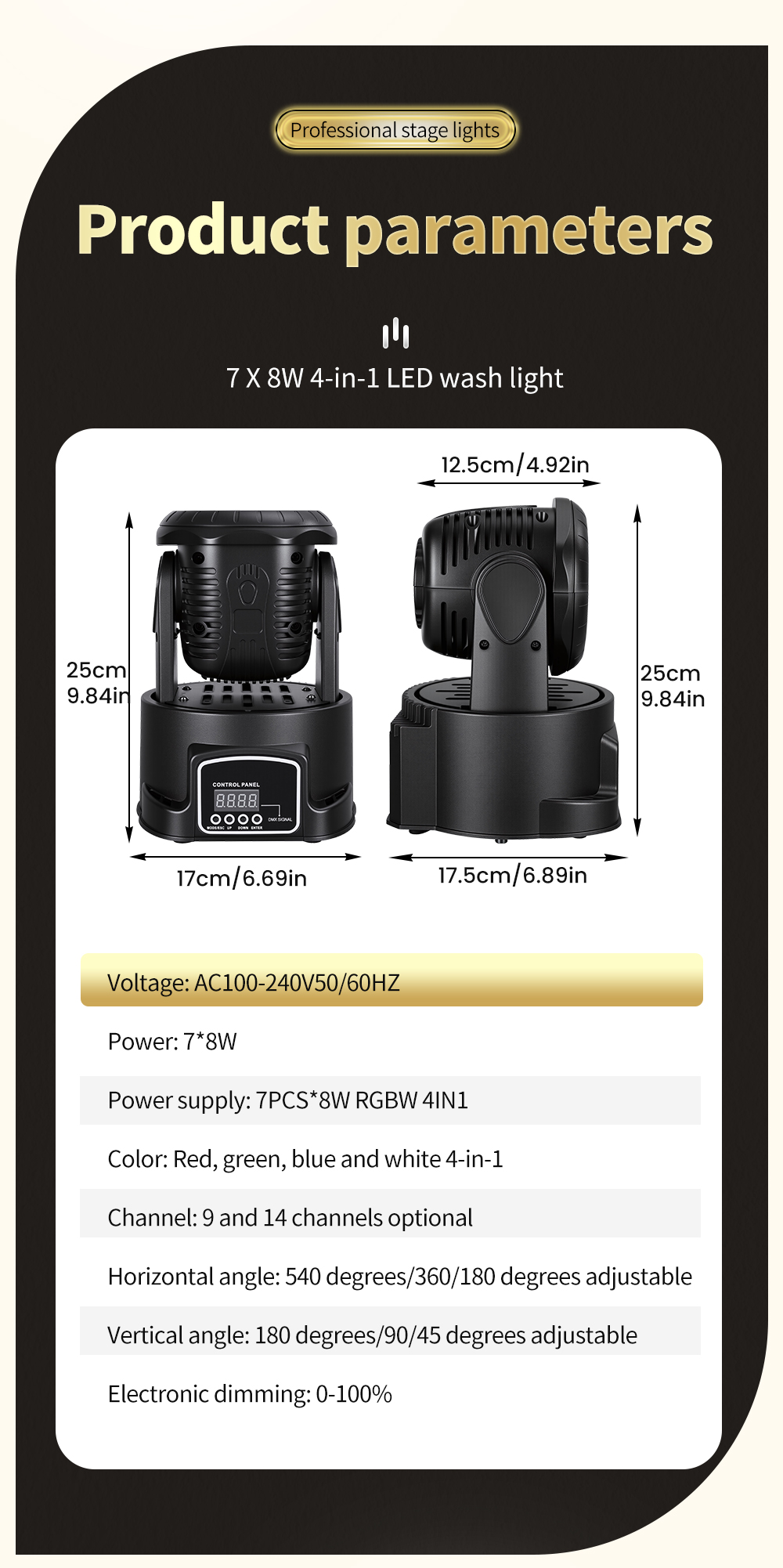

Technical Parameters:
Voltage:ac100-240v 50/60hz
Power: 70w
Power supply: 7pcs*10w rgbw 4in1

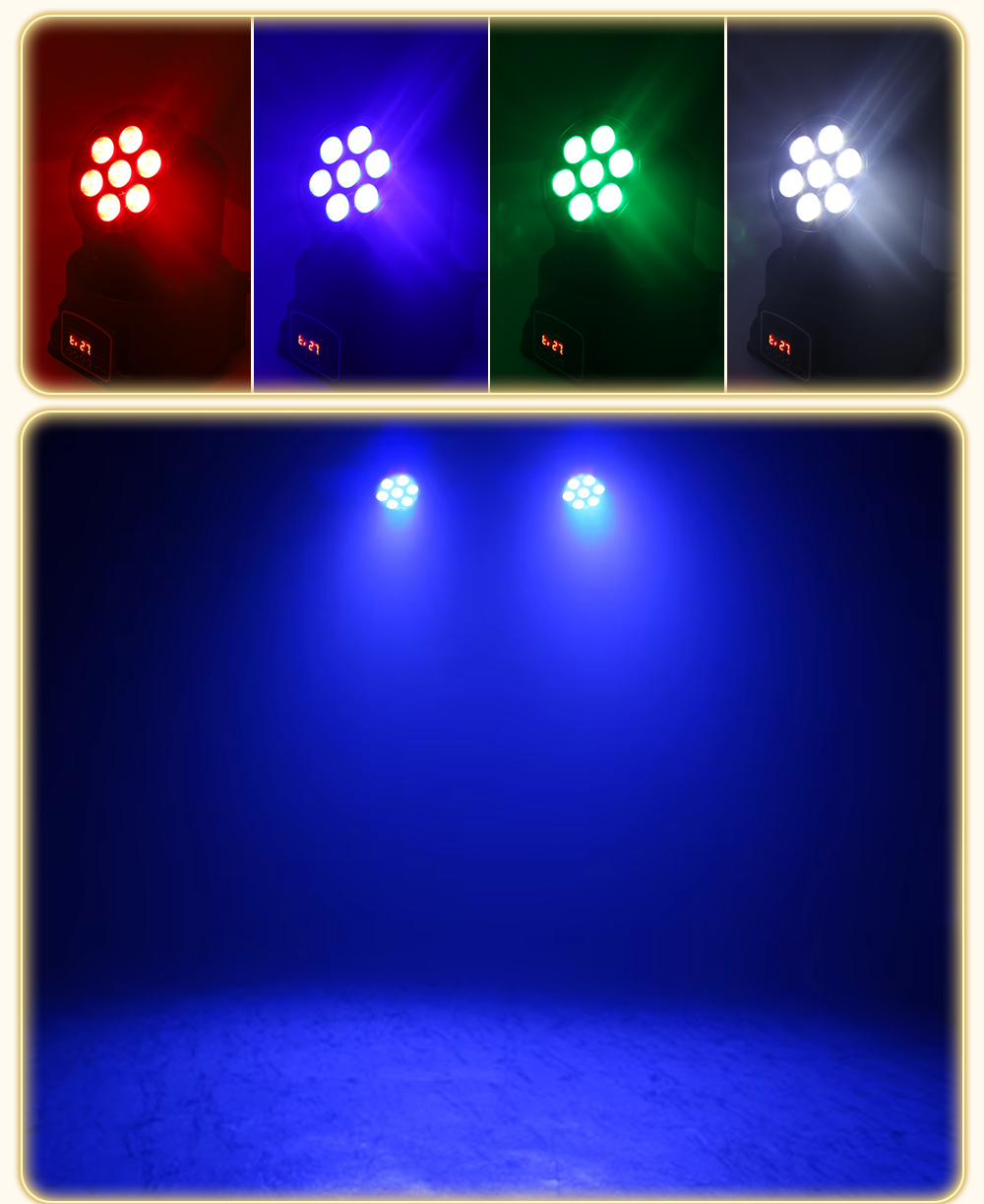

Color: red, green, blue and white
Channels: 9 and 14 channels available

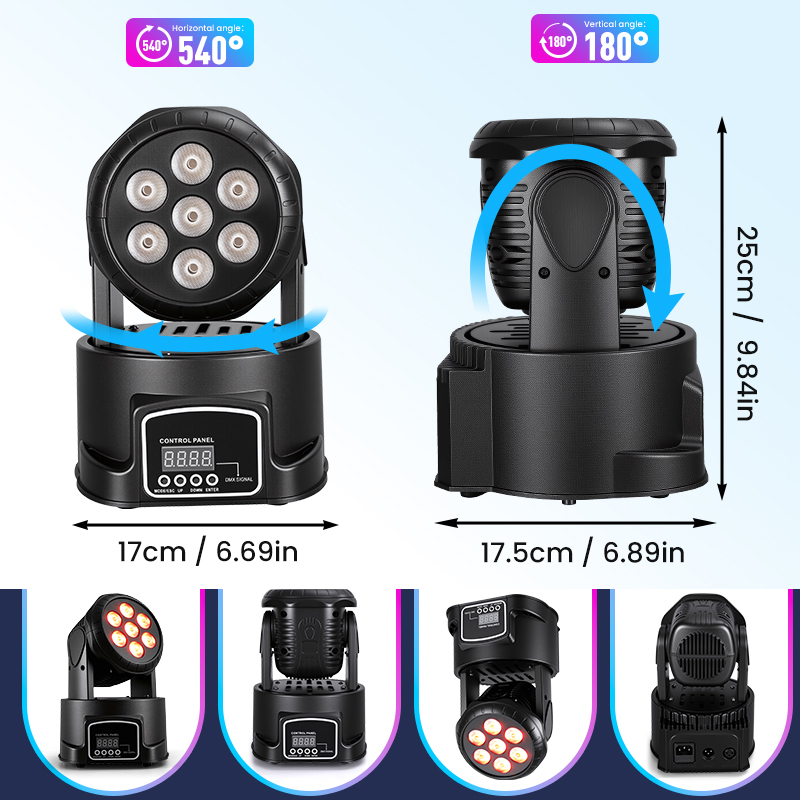

Horizontal angle: 540 degrees/360/180 degrees adjustable
Vertical angle: 180 degrees/90/45 degrees adjustable
Electronic dimming:0-100%

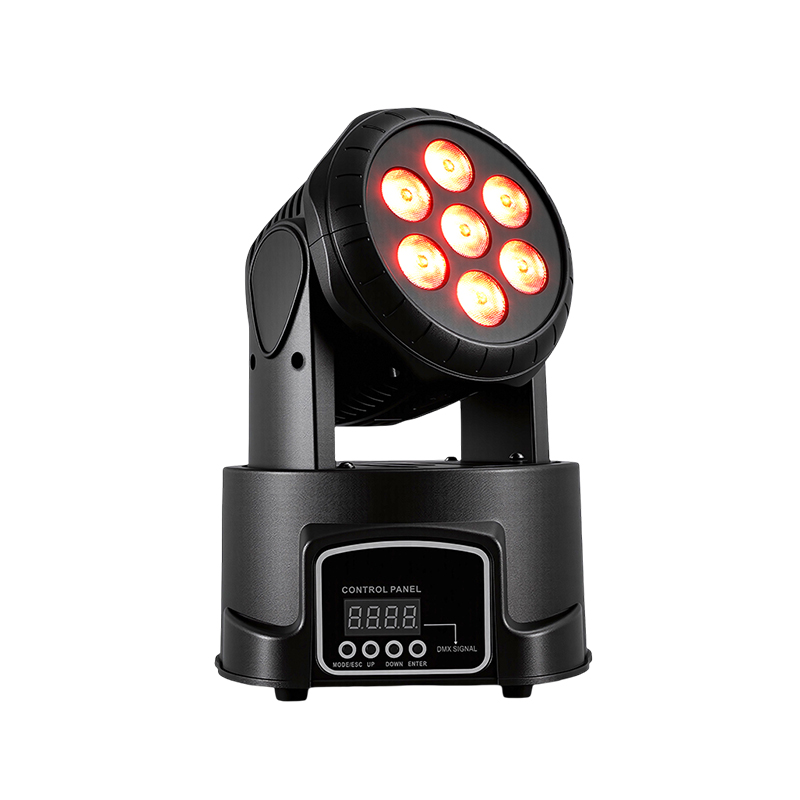

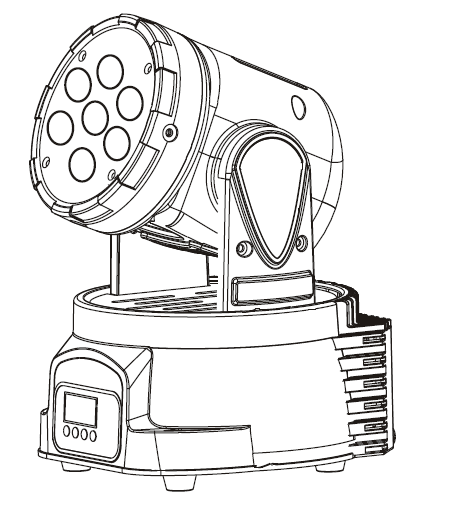

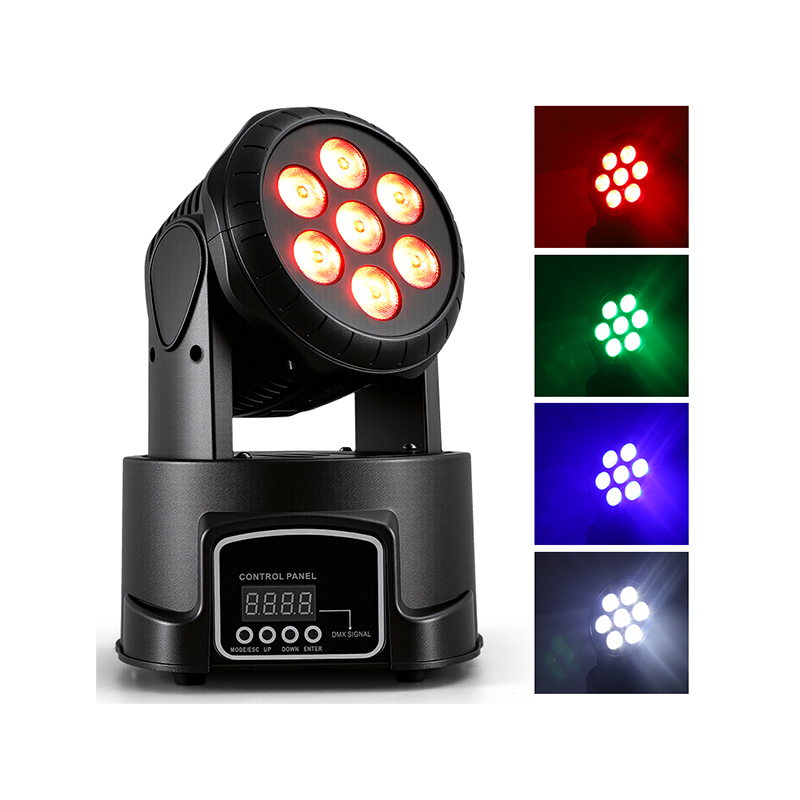

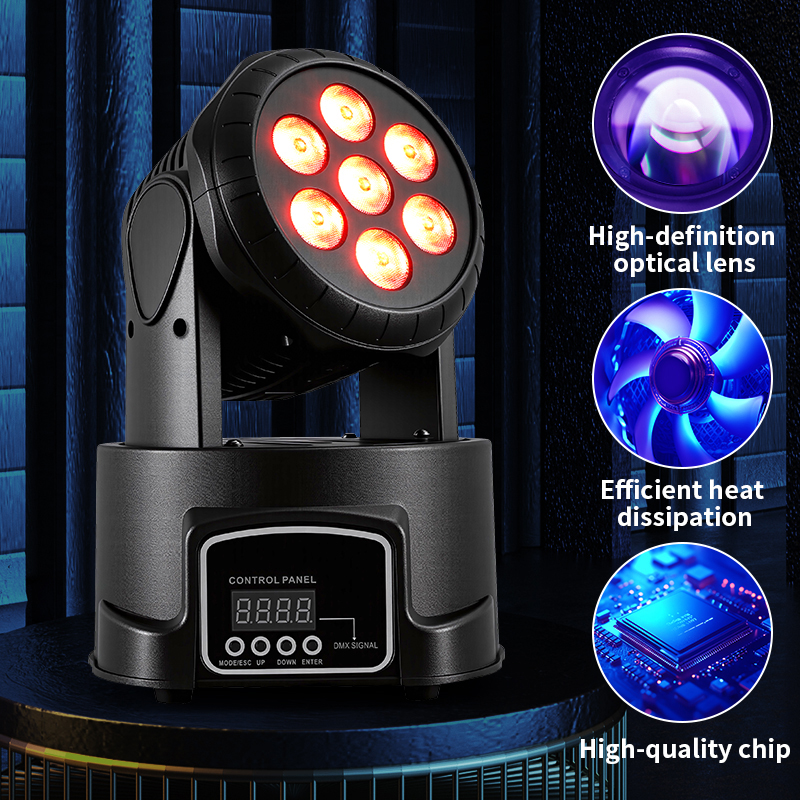

LED 7PCS MOVING HEAD LIGHT
Instruction Manual
Please read the instruction manual carefully before use
DMX512 STANDARD CHANNEL MODE: 9CH/14CH
9-channel mode
Passage | Function | |
1 | 0-255 | Level |
2 | 0-255 | Vertical |
3 | 0-7 8-134 135-239 240-255 | Dimming and stroboscopic No effect Dimming Strobe from slow to fast Enlightenment |
4 | 0-255 | Red dimming |
5 | 0-255 | Green Dimming |
6 | 0-255 | Dimmable blue |
7 | 0-255 | White dimmable |
8 | 0-255 | motor speed |
9 | 150-200 | Reset |
Passage | Function | |
1 | 0-255 | Level |
2 | 0-255 | Horizontal fine-tuning |
3 | 0-255 | Vertical |
4 | 0-255 | Vertical fine-tuning |
5 | 0-255 | Speed |
6 | 0-7 8-134 135-239 240-255 | No effect Dimming Strobe from slow to fast Enlightenment |
7 | 0-255 | Red dimming |
8 | 0-255 | Green Dimming |
9 | 0-255 | Blue Dimmer |
10 | 0-255 | White Dimming |
11 | 0-7 8-231 232-255 | Color options Color combination 1 Color jumping |
12 | 0-255 | Color speed |
13 | 0-7 8-127 128-255 | No selfdie (euph.) Voice-activated |
14 | 150-200 | Reset |
