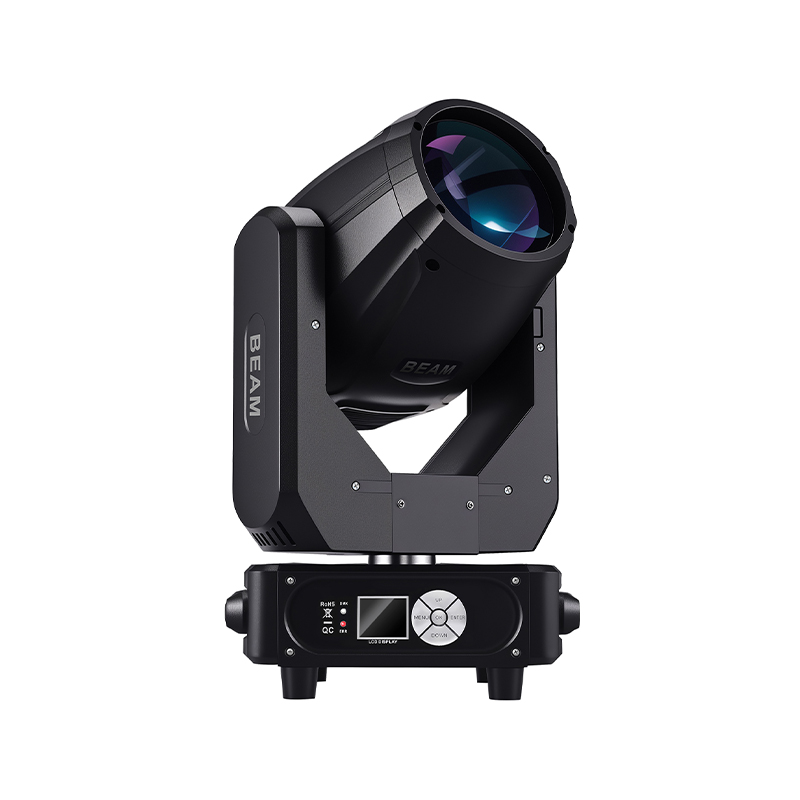

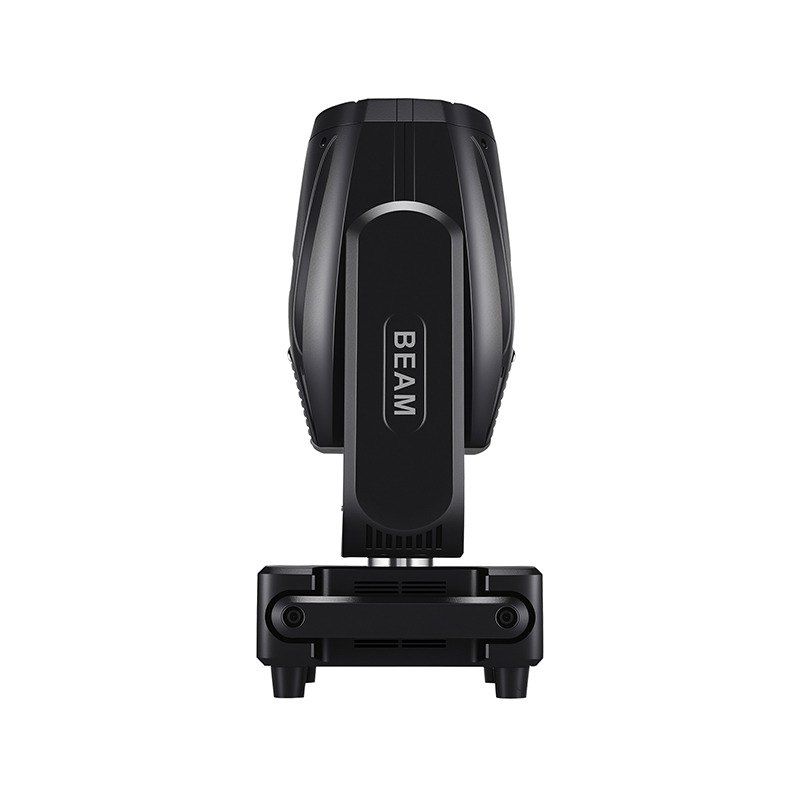

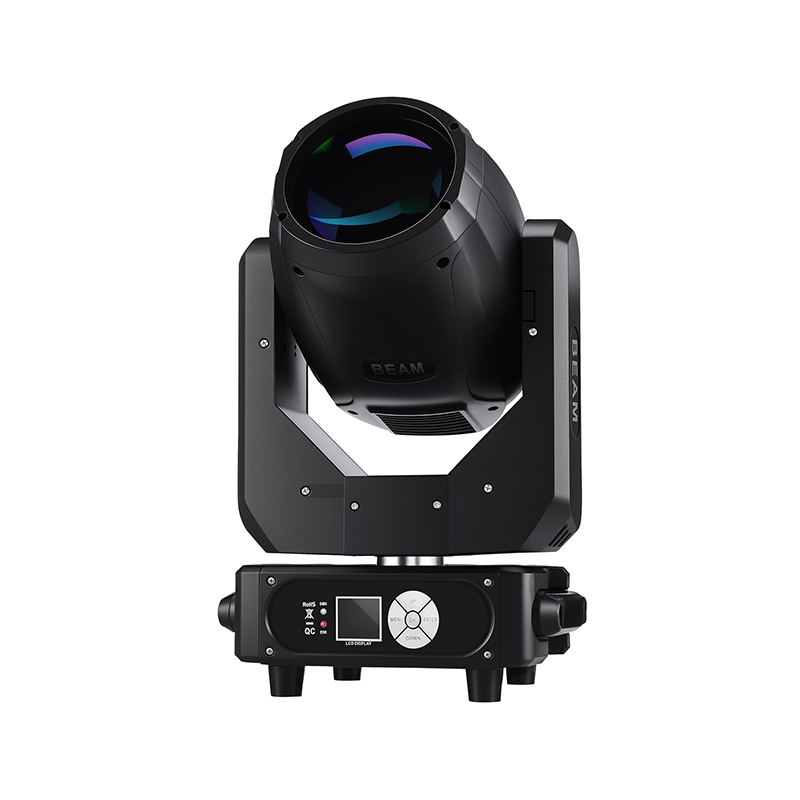

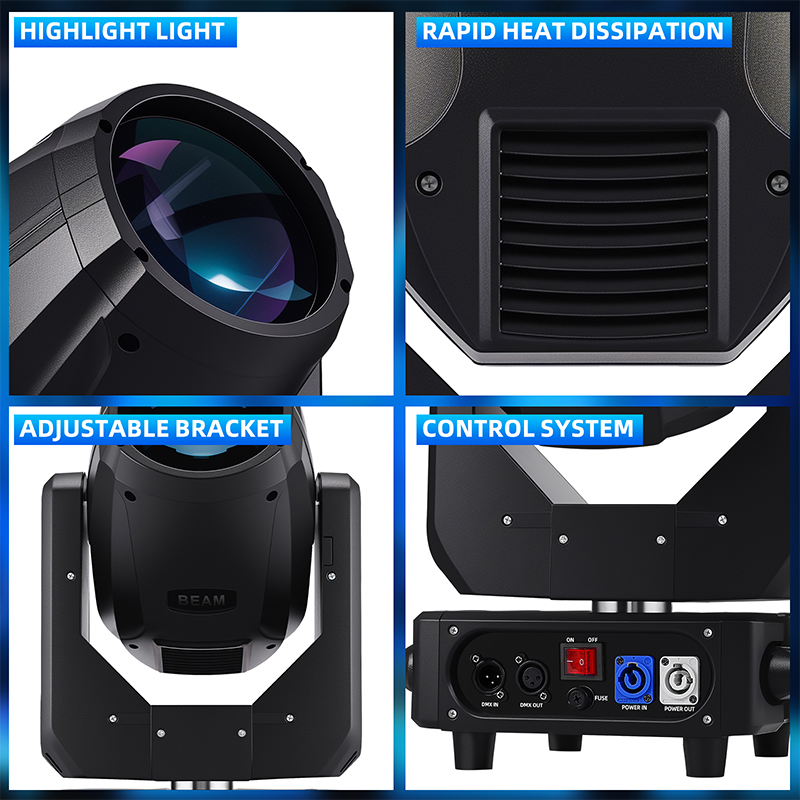

1.Main Function
Ø Input voltage: AC 100V-240V/47-63HZ
Ø Power dissipation：350W
Ø Light bulb type：OSRAM 295W
Ø Control mode: DMX512 control / Built-in autonomous movement / Voice control autonomous movement / Master-slave mode
Ø Channel mode: 16 channels
Ø A color disc with 14 colors plus white light, and a pattern disc with 13 patterns plus white light. The color disc has a flowing scrolling effect of half-colors. The pattern disc has a flowing scrolling and shaking effect.
Ø Two prisms, each with the ability to be positioned at any angle and to rotate both forwards and backwards.
Ø Stroboscopic effect has multiple functions. When the light gradually opens and closes, it is smooth and without jitter.
Ø Protection level: IP20

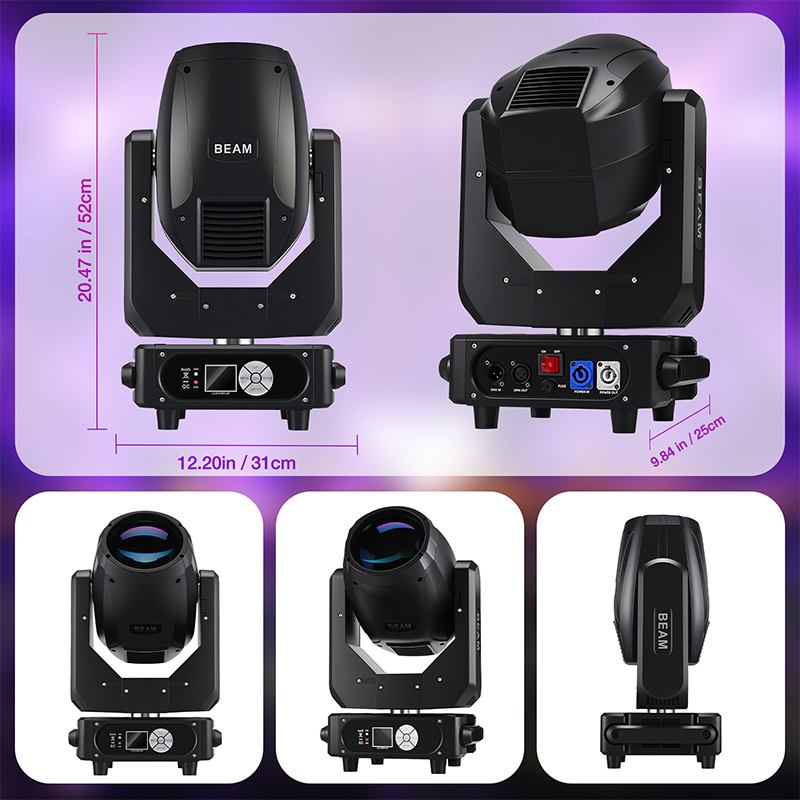

Ø Size: 250*310*530 mm
Ø Weight: 12.75 Kg
2.DMX Channel Table
DMX Channel Table
16 Channel | |||
Channel | Function | Numerical Value | Description |
1 | colour disc | 0 - 4 | White light |
5 - 9 | White light + Color 1 | ||
10 - 14 | Color 1 | ||
15 - 19 | Color 1+Color 2 | ||
20 - 24 | Color 2 | ||
25 - 29 | Color 2+Color 3 | ||
30 - 34 | Color 3 | ||
35 - 39 | Color 3+Color 4 | ||
40 - 44 | Color 4 | ||
45 - 49 | Color 4+Color 5 | ||
50 - 54 | Color 5 | ||
55 - 59 | Color 5+Color 6 | ||
60 - 64 | Color 6 | ||
65 - 69 | Color 6+Color 7 | ||
70 - 74 | Color 7 | ||
75 - 79 | Color 7+Color 8 | ||
80 - 84 | Color 8 | ||
85 - 89 | Color 8+Color 9 | ||
90 - 94 | Color 9 | ||
95 - 99 | Color 9+Color 10 | ||
100 - 104 | Color 10 | ||
105 - 109 | Color 10+Color 11 | ||
110 - 114 | Color 11 | ||
115 - 119 | Color 11+Color 12 | ||
120 - 124 | Color 12 | ||
125 - 129 | Color 12+Color 13 | ||
130 - 134 | Color 13 | ||
135 - 139 | Color 13+Color 14 | ||
140 - 144 | Color 14 | ||
145 - 149 | Color 14+White light | ||
150 - 200 | Rotate counterclockwise from fast to slow | ||
201 - 255 | Rotate clockwise from slow to fast | ||
2 | Strobe | 0 - 3 | dimming |
4 - 103 | Normal stroboscopic effect | ||
104 - 107 | dimming | ||
108 - 207 | Pulse stroboscopic effect | ||
208 - 212 | dimming | ||
213 - 251 | Random Strobe | ||
252 - 255 | dimming | ||
3 | dimming | 0 - 255 | 0% - 100% Linear Dimming |
4 | Fixed chart disk | 0 - 4 | circular hole |
5 - 9 | Graph 1 | ||
10 - 14 | Graph 2 | ||
15 - 19 | Graph 3 | ||
20 - 24 | Graph 4 | ||
25 - 29 | Graph 5 | ||
30 - 34 | Graph 6 | ||
35 - 39 | Graph 7 | ||
40 - 44 | Graph 8 | ||
45 - 49 | Graph 9 | ||
50 - 54 | Graph 10 | ||
55 - 59 | Graph 11 | ||
60 - 64 | Graph 12 | ||
65 - 69 | Graph13 | ||
70 - 125 | Rotate counterclockwise from fast to slow | ||
126 - 130 | circular hole | ||
131 - 190 | Rotate clockwise from slow to fast | ||
191 - 195 | Graph 1 Jitter | ||
196 - 200 | Graph 2 Jitter | ||
201 - 205 | Graph 3 Jitter | ||
206 - 210 | Graph 4 Jitter | ||
211 - 215 | Graph 5 Jitter | ||
216 - 220 | Graph 6 Jitter | ||
221 - 225 | Graph 7 Jitter | ||
226 - 230 | Graph 8 Jitter | ||
231 - 235 | Graph 9 Jitter | ||
236 - 240 | Graph 10 Jitter | ||
241 - 245 | Graph 11 Jitter | ||
246 - 250 | Graph 12 Jitter | ||
251 - 255 | Graph 13 Jitter | ||
5 | Prism 1 | 0 - 127 | No effect |
128 - 255 | Cut into Prism 1 | ||
6 | Prism 2 | 0 - 127 | No effect |
128 - 255 | Cut into Prism 2 | ||
7 | Prism rotation | 0 - 127 | Linear rotation |
128 - 188 | Clockwise rotation from fast to slow | ||
189 - 194 | Stop | ||
195 - 255 | Counterclockwise rotation from slow to fast | ||
8 | Atomization | 0 - 127 | No effect |
128 - 255 | Cut into atomization | ||
9 | Focus | 0 - 255 | 0% - 100% linear focusing |
10 | X-axis | 0 - 255 | 0-540 degrees |
11 | X-axis fine-tuning | 0 - 255 | X-axis 16bit |
12 | Y-axis | 0 - 255 | 0-270 degrees |
13 | Y-axis fine-tuning | 0 - 255 | Y-axis 16bit |
14 | XY speed | 0 - 255 | From fast to slow |
15 | Colorful | 0 - 127 | No effect |
128 - 255 | Cut into colorful | ||
16 | Reset | 0 - 99 | No effect |
100 - 105 | Bubble elimination | ||
106 - 199 | No effect | ||
200 - 205 | Bubble point | ||
206 - 240 | No effect | ||
241 - 255 | Reset (valid for 5 seconds) | ||

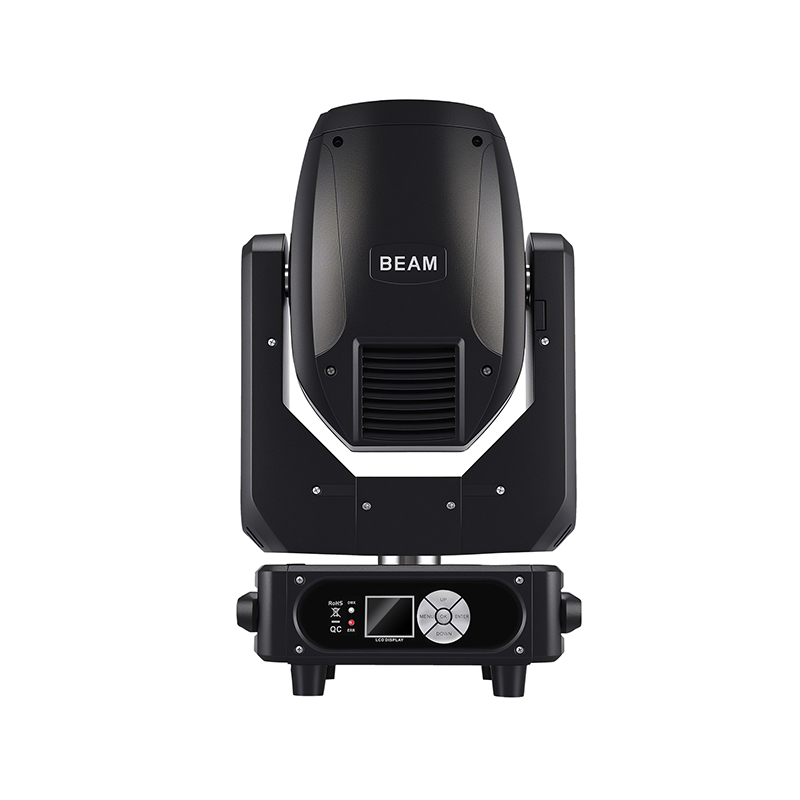

Ø MENU : Cycle through top-level menus or return to the previous menu level.
Ø ENTER: Enter the next menu level or confirm and save the selected parameters.
Ø UP: Navigate up in the menu, switch the selected parameter, or increase the value.
Ø DOWN: Navigate down in the menu, switch the selected parameter, or decrease the value.
Menu Structure
Settings | Function | |
Address Code | 1 - 512 | Set Address Code |
Channel | 16CH | Set Channel |
Operation Mode | DMX512/Self-propelled/Sound-activated/Manual | Set Operation Mode |
Address Code Auto | On/Off | Auto-calculate address code. For example, if the current address code is 1 and the channel mode is 16CH, after enabling address code auto, pressing "Set Address Code" will automatically add 16, so the address code becomes 17. |
Signal Hold | On/Off | When enabled, the original action will be maintained without a signal. |
XY Swap | On/Off | Swap X and Y channels |
X-axis Inversion | On/Off | X-axis inversion |
Y-axis Inversion | On/Off | Y-axis inversion |
Encoder Error Correction | On/Off | Encoder error correction |
Hall Error Correction | On/Off | Hall error correction |
Restore Settings | Yes/No | Restore factory settings (but fine-tuning data will not be restored) |
Manual | Manual | Function | |
01 | Color wheel | 0-255 |
|
02 | Strobe | 0-255 |
|
03 | Dimming | 0-255 |
|
04 | Gobos wheel | 0-255 |
|
05 | Prism 1 | 0-255 |
|
06 | Prism 2 | 0-255 |
|
07 | Prism rotation | 0-255 |
|
08 | Atomization | 0-255 |
|
09 | Focusing | 0-255 |
|
10 | X-axis | 0-255 |
|
11 | X-axis fine-tuning | 0-255 |
|
12 | Y-axis | 0-255 |
|
13 | Y-axis fine-tuning | 0-255 |
|
14 | XY speed | 0-255 |
|
15 | Colorful | 0-255 |
|
16 | Reset | 0-255 |
|
Calibration | Function |
Please enter a 4-digit password to use this function. | |
Display | Function | |
Screen Saver Time | 15s/30s/60s/Off | Returns to the desktop when the time is up. |
Backlight Time | 15s/30s/60s/Off | The screen turns off when the time is up. |
Screen Inversion | On/Off | Controls the normal/reverse display of the screen. |
Language | Chinese/English | Select Chinese or English. |
Reset | Function | |
Full Reset | Yes/No | Reset all motors. |
XY Reset | Yes/No | Reset XY motors. |
Head Reset | Yes/No | Reset head small motors. |
Light Settings | Function | |
Power-on Bulb On | Yes/No | Automatically turn on the bulb after power-on reset is completed. |
Manual Bulb On | Yes/No | Manually light the bulb. |
Half Power | Yes/No | Whether to turn on the half-power mode. |
DMX Data Monitoring | Function |
Monitor the DMX512 data values of each channel. | |
Reset Information | Function |
If the system reset is normal, it will display "System Normal". If there is a reset error, it will prompt the corresponding reset error information. | |
Sensor Information | Function | |
X Encoder | ***** | Current encoder count value |
Y Encoder | ***** | Current encoder count value |
X Encoder Status | 00/11 | Signal line status of encoder A and B |
Y Encoder Status | 00/11 | Signal line status of encoder A and B |
X Hall | 0/1 | Hall effect status: 1 when the Hall is at the magnet position, 0 otherwise |
Y Hall | 0/1 | Hall effect status: 1 when the Hall is at the magnet position, 0 otherwise |
Color Wheel Hall | 0/1 | Hall effect status: 1 when the Hall is at the magnet position, 0 otherwise |
Pattern Wheel Hall | 0/1 | Hall effect status: 1 when the Hall is at the magnet position, 0 otherwise |
Focus Hall | 0/1 | Hall effect status: 1 when the Hall is at the magnet position, 0 otherwise |
Usage Record | Function |
Usage times, usage duration, bulb on time, etc. | |
System Version | Function |
System hardware version and software version number | |
Instructions:
1. When restoring factory settings, only parameters with underlines in the menu will be restored, and other parameters will not be automatically restored or cleared.
2. The [Send Local Parameters] menu allows the parameter settings of underlined items in the local device to be sent to another or multiple lighting fixtures via DMX data cable, avoiding repeated setup work. When the receiving fixture receives the correct parameters, it will perform a reset.

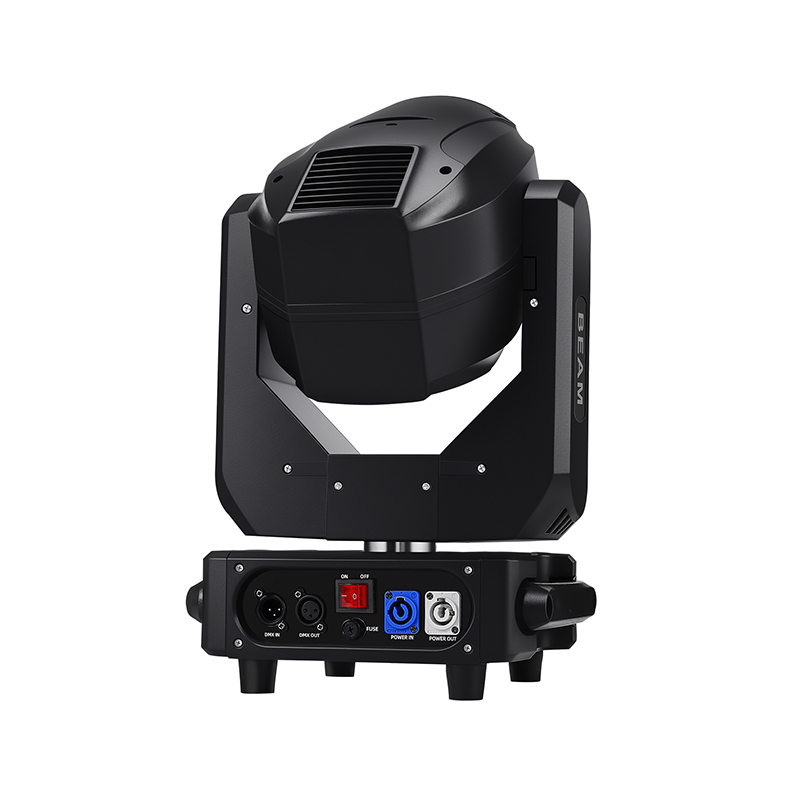

Fault | Solution |
Lamp does not power on and shows no response at all. | Ø Check if the fuse is damaged. Ø Verify that the AC voltage is normal. Ø The switching power supply inside the lamp body may be damaged. Ø The control board inside the lamp body may be damaged. |
Lamp is not controlled. | Ø Check if the DMX signal is normal. When normal, the DMX signal indicator on the display panel will flash. Ø Verify that the address code is set correctly. Ø Check if the channel mode is set correctly. Ø Check if the DMX signal cable is too long or if the number of daisy-chained lamps is excessive. |
The XY axis positioning is abnormal. | Ø The optocoupler sensor may be damaged or improperly installed, causing error correction even in the correct position. Set [XY Error Correction Enable] to [No] in the menu, adjust the optocoupler sensor circuit board to a suitable position, or replace the circuit board. |
